Dell Performance Dock WD19DCS USB-C Docking Station with 240W Power Adapter, HDMI, DisplayPort, Ethernet & Multi-Port Connectivity
Online ordering opens soon. Contact us for pricing and availability.

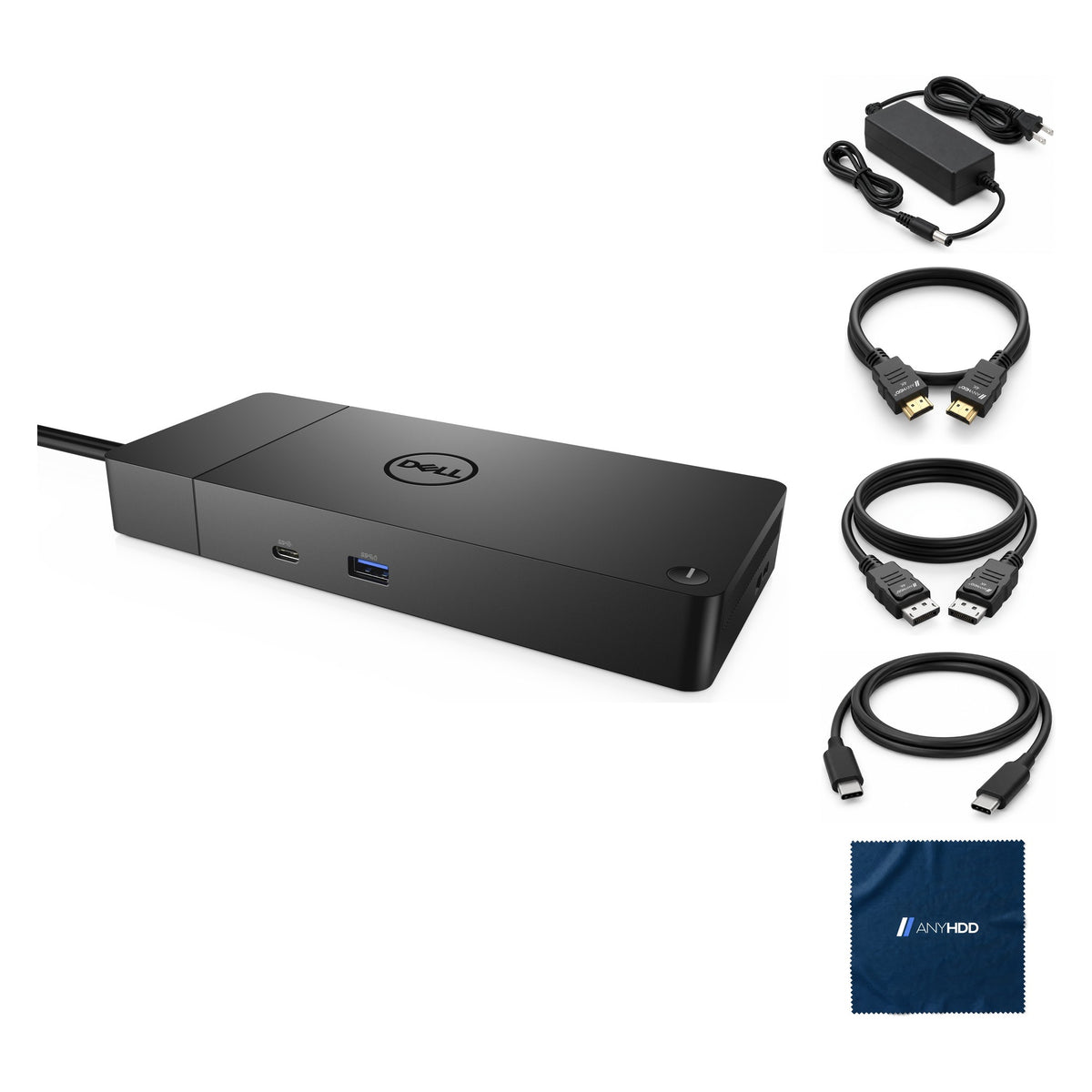

What's in the box.
Two cables. 210 watts.
Built for Dell Precision workstations: two USB-C cables carry up to 210 W, up to four displays, Gigabit Ethernet and five USB ports. One cable works with other USB-C laptops.
Charges while it works.
With both USB-C cables connected to a Dell Precision 7000-series workstation, the 240 W adapter delivers up to 210 W to the laptop. On a single cable it delivers 130 W to Dell systems and 90 W (USB Power Delivery 3.0) to other laptops; the second cable can then charge a phone or tablet at up to 15 W.
The USB ports keep charging phones and power banks with no laptop connected, as long as the dock is on its adapter.
Up to four displays.
Pick your laptop and layout.
Two DisplayPort 1.4, plus HDMI 2.0 or the rear USB-C (one or the other: they share a channel). Choose your laptop's DisplayPort capability and how many screens you run.
Dell: the HDMI and the rear USB-C video port are toggled; only one of them can drive a display at a time.
With Intel graphics and the laptop screen on, Dell supports two external displays; NVIDIA or AMD discrete graphics support three external displays plus the laptop screen. Dell's table covers the dual-cable connection on recommended Precision systems only; it doesn't give single-cable figures.
Figures from Dell's WD19DCS User Guide display resolution table. Each monitor's EDID also limits them; on Linux the external count is one less than shown. HDCP up to HDCP 2.2.
9 ports, front and back.
Video, network and USB on the back; USB-C and USB-A up front. No audio jacks on this model.
Front
Rear
The rear USB-A pair is stacked.
Front
- USB-C 3.2 Gen 27.5 W
- USB-A PowerShare10 W, BC 1.2
Rear — video
- DisplayPort++ 1.4 × 2up to 4K 60 Hz, see selector
- HDMI 2.0shares a channel with the rear USB-C
- USB-C with DisplayPort 1.4USB 3.2 Gen 2 · 15 W
Rear — data and power
- USB-A × 24.5 W each
- Gigabit EthernetWake-on-LAN, MAC pass-through on select Dell systems
- Power in 7.4 mm240 W adapter
- Host cable dual USB-C0.8 m, swappable cable module
Wired where it counts.
Gigabit Ethernet gives a laptop that lives on Wi-Fi a steady connection at the desk, with the management features IT asks for on Dell systems.
- Gigabit EthernetRJ45: green 10 Mb, amber 100 Mb, green + orange 1 Gb; flashing amber on activity.
- Wake-on-LANFrom S3, S4 or S5 sleep states with select Dell systems.
- MAC address pass-throughWith select Dell systems: the laptop keeps its own network identity through the dock.
- PXE and USB bootSupported through the dock once enabled in the laptop BIOS (Dell troubleshooting guide).
Built for the whole floor.
The WD19 family is Dell's modular commercial dock line: managed, updated and serviced like the rest of the fleet.
Managed firmware
Dock firmware updates on Windows, Linux (fwupd/LVFS) and ChromeOS; command-line silent install for IT.
Asset management
Dell Command | Monitor and Microsoft SCCM report the dock locally and remotely.
Swappable cable module
The USB-C cable module comes off with two screws for field replacement.
Power button sync
On supported Dell systems the dock button powers on, sleeps or force-shuts down the laptop.
Works with what you already own.
Built for Dell Precision 7000-series dual-USB-C workstations, and works on one cable with other laptops that have DisplayPort over USB-C.
A Dell Precision 7000-series laptop with dual USB-C for the full 210 W and dual-cable display modes; any laptop with DisplayPort over USB-C on one cable (130 W Dell, 90 W other).
Dell's Realtek USB GbE Ethernet driver for full function on Windows, from dell.com/support. Dell Command | Update automates it on Latitude, Precision and XPS.
Renewed, the way we do it.
Every WD19DCS goes through the same five stations before it's listed. If it doesn't pass, it doesn't ship.
Intake and identification
Model, revision and service tag logged. Anything that isn't a genuine Dell WD19DCS is rejected here.
Full functional test
Every port loaded, every video output driven, power delivery measured under load on a real laptop.
Firmware and reset
Latest Dell dock firmware applied. Any stored settings cleared.
Clean and grade
Housing cleaned and inspected. Cosmetic grade recorded.
Repack with the right adapter
Matched with a 240 W adapter and the cable set, packed in a new box.
Backed by AnyHDD's one-year warranty and 30-day returns, with free return shipping on defective items. We've supplied IT hardware to businesses since 2006.
Factory sealed.
This one is factory sealed, so it skips the bench entirely — it ships exactly as it left the manufacturer.
New stock arrives sealed and stays that way, so there is no bench record to show.
It carries the same 1-year AnyHDD warranty as everything else on the site.
Tech specs
As published in Dell's WD19DCS User Guide.
| Model | Dell Performance Dock WD19DCS |
|---|---|
| Host connection | Dual USB 3.2 Gen 2 Type-C, 0.8 m cable (swappable cable module) |
| Video ports | 2 × DisplayPort++ 1.4 1 × HDMI 2.0 or 1 × USB-C with DisplayPort 1.4 (shared, one at a time) |
| External displays | Up to 4, depending on the laptop (see the layout selector) |
| USB-A ports | 3 × USB 3.2 Gen 1: 1 front with PowerShare (10 W), 2 rear (4.5 W each) |
| USB-C ports | 1 × front USB 3.2 Gen 2 (7.5 W) 1 × rear USB 3.2 Gen 2 with DisplayPort 1.4 (15 W) |
| Network | Gigabit Ethernet (RJ45). Wake-on-LAN (S3/S4/S5) and MAC address pass-through with select Dell systems |
| Audio | None |
| Power adapter | 240 W, 7.4 mm barrel |
|---|---|
| Power delivery to host | 210 W to Dell Precision 7000-series (both cables); 130 W to Dell systems (single cable); 90 W USB PD 3.0 to non-Dell systems (single cable) |
| Button | Sleep / wake / power; mirrors the laptop's button on supported Dell systems |
| LED indicators | Adapter LED white; dock LED flashes three times on power; cable LED on when the host supports video + data + power; RJ45 link and activity |
| Firmware and management | Dell dock firmware utility (silent install), Dell Command | Update, Dell Command | Monitor, SCCM |
| HDCP | Up to HDCP 2.2 |
| Dimensions | 205 × 90 × 29 mm (8.07 × 3.54 × 1.14 in) |
| Weight | 685 g (1.51 lb), dock |
| Operating temperature | 0 °C to 35 °C |
Source: WD19DCS User Guide (parts and features, docking specifications, display resolution table, LEDs, FAQ, troubleshooting). Inch conversion of the dimensions is ours.
Questions we get asked.
Will the WD19DCS work with my non-Dell laptop?
On a single USB-C cable, yes, if the laptop has DisplayPort over USB-C: non-Dell laptops get 90 W (USB Power Delivery 3.0). The dual-cable connection and its 210 W are for Dell Precision 7000-series workstations. The dock's power button, Wake-on-LAN and MAC address pass-through work with supported Dell systems only. Dell supports its docks with select Dell systems; check the Dell Commercial Docking Compatibility Guide.
Why can't I use the HDMI port and the rear USB-C for two separate monitors?
Dell built the HDMI 2.0 and the rear USB-C video port as one shared output: only one of them can drive a display at a time. Use the two DisplayPorts plus one of those two.
Will the dock charge my phone with the laptop unplugged?
Yes. Dell calls it the charging station feature: with the dock on its own adapter, the USB ports charge a phone or power bank even with no laptop connected.
My connected devices stopped working after a power cut. What should I do?
The dock runs on AC power only and must renegotiate power with the laptop after an outage. Dell's reset: unplug the USB-C cable from the laptop, remove the adapter from the dock, connect the adapter first and the laptop second.
The fan comes on. Is that normal?
Yes. The fan is temperature-controlled with five speeds and runs briefly when you first plug in the adapter. A loud fan means it's running hot: clear the vents and keep the room under 35 °C. If over-temperature protection shuts the dock down, unplug the USB-C cable and power, wait 15 seconds, and plug the power back in.
How fast does it ship?
Every order ships with tracking. Delivery options and timing are shown at checkout.
What warranty comes with it?
It is covered by the AnyHDD 1-year warranty from the date of delivery, against defects in materials and workmanship and hardware failures under normal use. It may also carry the manufacturer's warranty.It is covered by the AnyHDD 1-year warranty from the date of delivery, against defects in materials and workmanship and hardware failures under normal use.
Can I return it?
Yes: 30-day returns, with free return shipping on defective items. You have 30 days from delivery.You have 30 days from delivery. If it arrived defective, damaged or isn't what you ordered, we cover return shipping; for other returns the return label is yours. Please send back the same item we shipped.
Is anything left on the WD19DCS from a previous owner?
No. Renewed units go through firmware and reset before they are listed: settings returned to factory defaults, and any stored settings cleared. We've supplied IT hardware to businesses since 2006.
Is it new, or renewed?
This listing is new: the dock ships factory sealed in Dell's own carton, with our cables and cloth packed alongside.
Is it new, or renewed?
This listing is renewed: the dock has been through the five stations above, tested on every port, firmware updated, reset, cleaned, graded and repacked with the adapter and cables.
