FI-6130 Document Scanner Bundle with 24V AC Adapter + USB 2.0 Cable + Microfiber Cleaning Cloth Included (Renewed)
Online ordering opens soon. Contact us for pricing and availability.

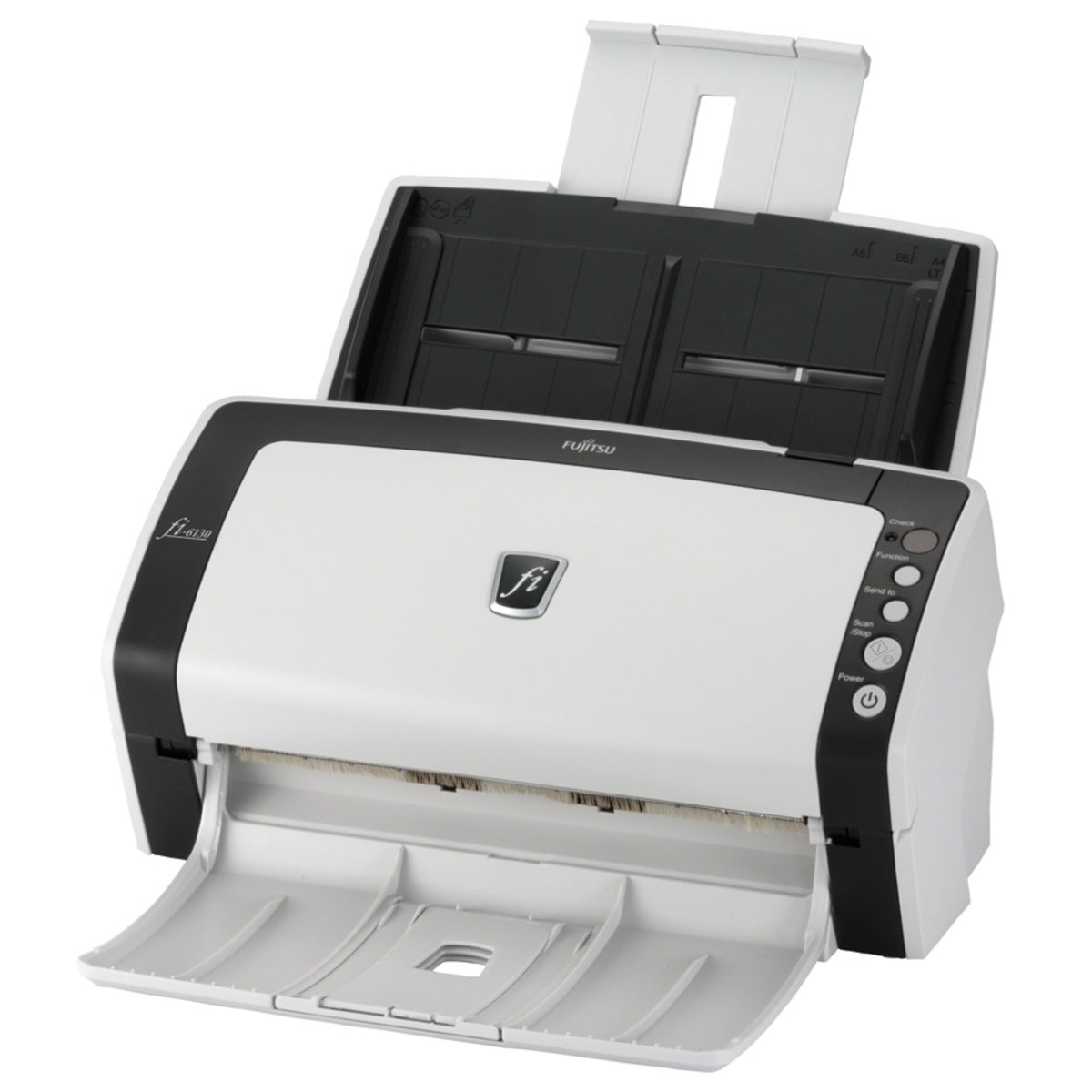

What's in the box.
The paper pile, gone by lunch.
Load up to 50 pages, press Scan, and the fi-6130 feeds them through a duplex path that captures both sides at once: 40 pages a minute in black and white or grayscale, 30 in color. TWAIN and ISIS drivers put it inside the document software an office already runs.
Mixed sizes, cards, long pages.
The feeder takes anything from a 2.05 × 2.91 inch slip to a legal page in the same stack, at 11 to 56 lb paper, plus ID-1 plastic cards up to 1.4 mm thick, three at a time or one embossed. Long-page mode scans documents up to 120 inches.
An ultrasonic sensor stops the scan when two sheets feed together. For pages with sticky notes or photos attached, the Intelligent Multifeed Function lets the scanner skip the false alarm.
How much paper do you have?
Here's how long it takes.
Fujitsu rates the fi-6130 at 40 pages a minute single-sided and 80 images a minute double-sided at 200 dpi in black and white or grayscale (30 and 60 in color, or at 300 dpi). Pick a day’s volume.
Times use the 40 ppm black-and-white and grayscale rating at 200 dpi; color and 300 dpi run at 30 ppm. Data transfer and software time add to it, and reloading the 50-sheet feeder adds time the arithmetic doesn’t include.
Scans that need less fixing afterward.
The TWAIN driver straightens, crops and sorts every page as it scans, so what lands in your document system is ready to file.
Automatically, every page
- Deskew and page size detectionstraightens and trims to the paper
- Blank page skipdrops the empty backs of one-sided pages
- Auto color detectioncolor or black and white per page
For difficult originals
- Hole punch removalfills the binder holes
- Image splitone scan into two pages
- Intelligent Multifeedscans pages with notes attached
Into your workflow
- TWAIN and ISIS driversfor capture and document-management software
- ScandAll PROFujitsu’s scanning application, bundled
- Imprinter portoptional imprinter PA03540-D201
One USB cable to the PC.
USB 2.0 to a Windows PC, and the TWAIN or ISIS driver makes the scanner available to the scanning and document-management applications that support those standards. The operator panel shows status on the scanner and launches a linked application from the Send to and Scan buttons.
- USB 2.0 Type-BUSB 1.1 works but scans more slowly.
- TWAIN and ISIS driversPlus ScandAll PRO, which supports both.
- Windows, per Fujitsu’s documentsWindows 2000 through Windows 10, and Windows Server 2003, 2008 and 2012.
- Function Number DisplayShows status and the application assigned to the Send to button (1 to 9 or C).
Built to be one of many.
The fi series is Fujitsu’s professional line, designed for departments that scan all day and IT teams that look after many scanners.
Consumables that last
Brake roller PA03540-0001 and pick roller PA03540-0002 are rated for about 200,000 sheets or one year each, and the scanner counts sheets for both.
Cleaning schedule
Fujitsu suggests cleaning the feeder every 5,000 sheets; error codes on the Function Number Display point to jams (J1) and multifeeds (J2).
Capture software
TWAIN and ISIS drivers with ScandAll PRO and VRS Professional; QuickScan Pro and Image Processing Software as trials.
Low power
38 W scanning, under 6.2 W in sleep mode. ENERGY STAR and RoHS.
Works with the software that scans through TWAIN or ISIS.
Fujitsu’s product page for the fi-6130 lists Windows 2000, XP, Vista, 7, 8/8.1 and 10, and Windows Server 2003, 2008 and 2012.
A Windows PC with a USB 2.0 port and Fujitsu’s TWAIN or ISIS driver. Check your Windows version against the driver before you buy.
A network drop, a separate flatbed for cards, or a subscription.
Renewed, the way we do it.
Every fi-6130 goes through the same five stations before it's listed.
Intake and identification
Model and serial logged; the scanner’s own sheet counters read and recorded.
Full functional test
A duplex test batch scanned and inspected for streaks, skew and double feeds; card feeding and the ultrasonic sensor checked.
Rollers and reset
Pick and brake rollers inspected and replaced if worn. Settings returned to defaults.
Clean and grade
Glass, rollers and paper path cleaned per Fujitsu’s guide. Cosmetic grade recorded.
Repack
Packed with the AC adapter, USB cable and AnyHDD microfiber cloth in a new box.
Backed by AnyHDD's one-year warranty and 30-day returns, with free return shipping on defective items. We've supplied IT hardware to businesses since 2006.
Tech specs
As published in Fujitsu’s fi-6130 Operator’s Guide and product page.
| Model | Fujitsu fi-6130, ADF sheet-fed |
|---|---|
| Scanning | Simplex or duplex; color, grayscale or monochrome |
| Image sensor · light | Color CCD × 2 (front, back) · white cold cathode fluorescent lamp × 2 |
| Speed, 200 dpi | Monochrome and grayscale 40 ppm / 80 ipm; color 30 ppm / 60 ipm |
| Speed, 300 dpi | 30 ppm / 60 ipm, all modes |
| Optical resolution | 600 dpi; output 50–600 dpi, 1200 dpi |
| Grayscale | 8 bits per color (10-bit internal) |
| ADF capacity | 50 sheets, A4/letter 80 g/m² (20 lb) |
| Document size | 2.05 × 2.91 in (52 × 74 mm) to 8.5 × 14 in; long page to 8.27 × 120 in (200 dpi or less beyond 34 in) |
| Paper weight | 41–210 g/m² (11–56 lb); A8 127–210 g/m²; ID-1 plastic cards to 1.4 mm |
| Multifeed detection | Ultrasonic sensor; Intelligent Multifeed Function |
| Interface | USB 2.0 / 1.1, Type-B |
|---|---|
| Drivers | FUJITSU TWAIN 32, FUJITSU ISIS |
| Bundled software | ScandAll PRO, Error Recovery Guide, Adobe Acrobat, VRS Professional; Image Processing Software Option and QuickScan Pro (trials) |
| Operating systems | Windows 2000, XP, Vista, 7, 8/8.1, 10; Windows Server 2003, 2008, 2012 (PFU fi-6130 product page) |
| Background | White or black, selectable |
| Option | Imprinter PA03540-D201 (cards can’t be scanned with it fitted) |
| Power | 38 W or less operating; under 6.2 W sleep |
| Environment | 41 to 95 °F (5 to 35 °C); 20–80% RH |
| Dimensions | 11.8 × 6.4 × 6.2 in (301 × 160 × 158 mm) without chute and stacker |
| Weight | 9.24 lb (4.2 kg) |
| Consumables | Brake roller PA03540-0001, pick roller PA03540-0002: about 200,000 sheets or one year each |
| Environmental | ENERGY STAR, RoHS |
Sources: Fujitsu fi-6130/fi-6230 Operator’s Guide P3PC-2162-02ENZ2 and Getting Started P3PC-2152-05EN; PFU global fi-6130 product page.
Questions we get asked.
Does it work on Windows 10 or 11?
Fujitsu’s product page for the fi-6130 lists Windows 2000 through Windows 10, plus Windows Server 2003, 2008 and 2012. Windows 11 isn’t listed for this discontinued model, so we don’t promise it; ask us before you buy if that’s your setup.
Does it work with a Mac?
Fujitsu’s fi-6130 documentation lists Windows only; there is no macOS driver in those documents.
What’s TWAIN and why does it matter?
TWAIN and ISIS are the standard interfaces between scanners and applications. Because the fi-6130 ships with both drivers, it appears as a scanner in document-management, accounting and medical-records software that support those standards.
When do the rollers need replacing?
Fujitsu suggests replacing the brake roller (PA03540-0001) and pick roller (PA03540-0002) every 200,000 sheets or one year, and cleaning the feeder every 5,000 sheets.
What’s the difference from the fi-6130Z?
The fi-6130Z is the later revision: it scans color at the full 40 ppm at 200 dpi (the fi-6130 does color at 30 ppm). Both take a 50-sheet stack and the same rollers.
What condition will mine arrive in?
This listing is renewed: verified working, reset and repacked, with light cosmetic wear at most. It carries the one-year AnyHDD warranty from the date of delivery.
What warranty is included?
It carries a one-year AnyHDD warranty from the date of delivery.
What is your return policy?
30 days for a full refund if it is not the right fit. Return shipping is covered on anything that arrives not as described.
Who is AnyHDD?
We've supplied IT hardware to businesses since 2006. Every unit is inspected and tested in our own building before it is listed.
