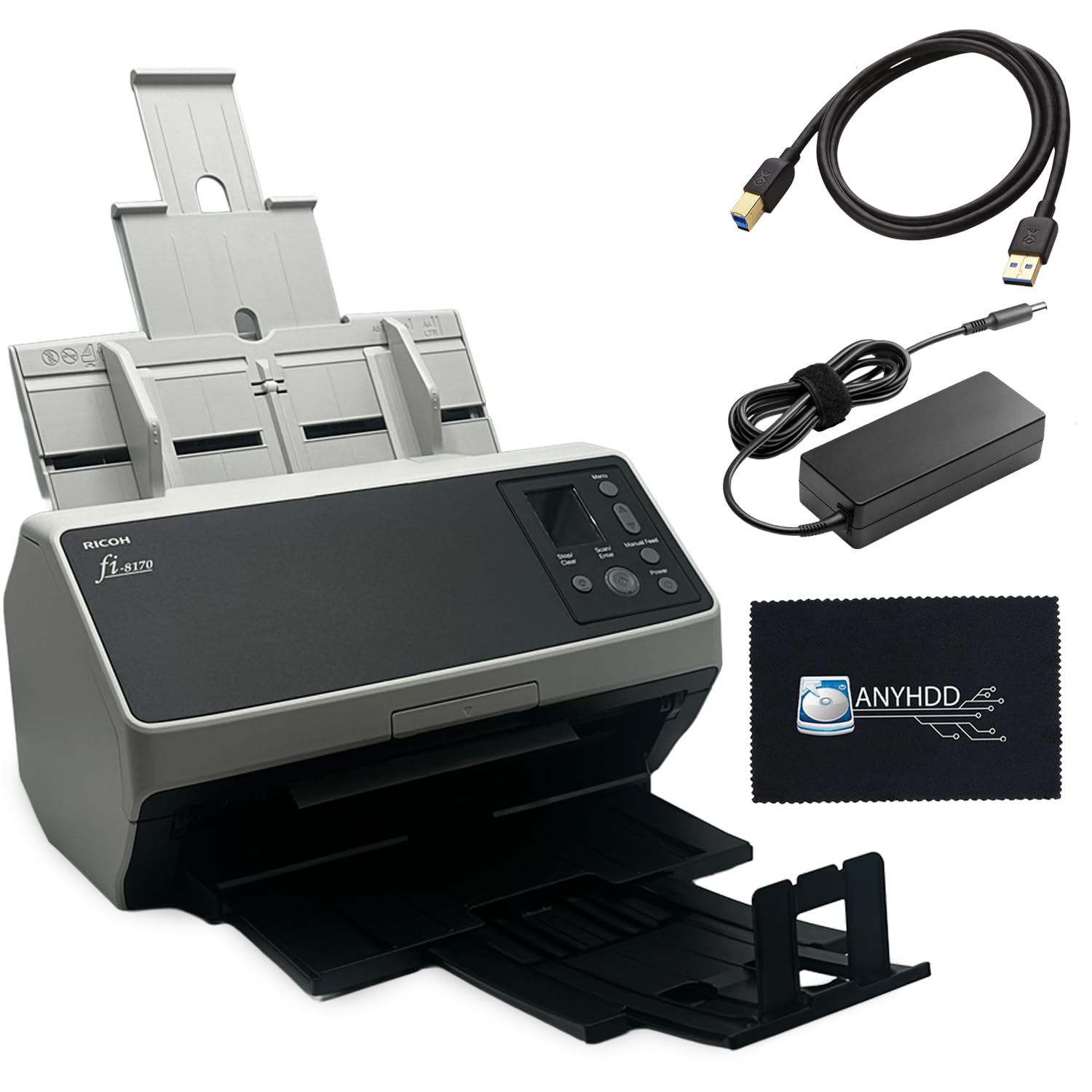

Fi-8170 for Professional High Speed Color Document Scanner with Power Adapter + USB 3.2 Cable + Microfiber Cloth Included
Online ordering opens soon. Contact us for pricing and availability.

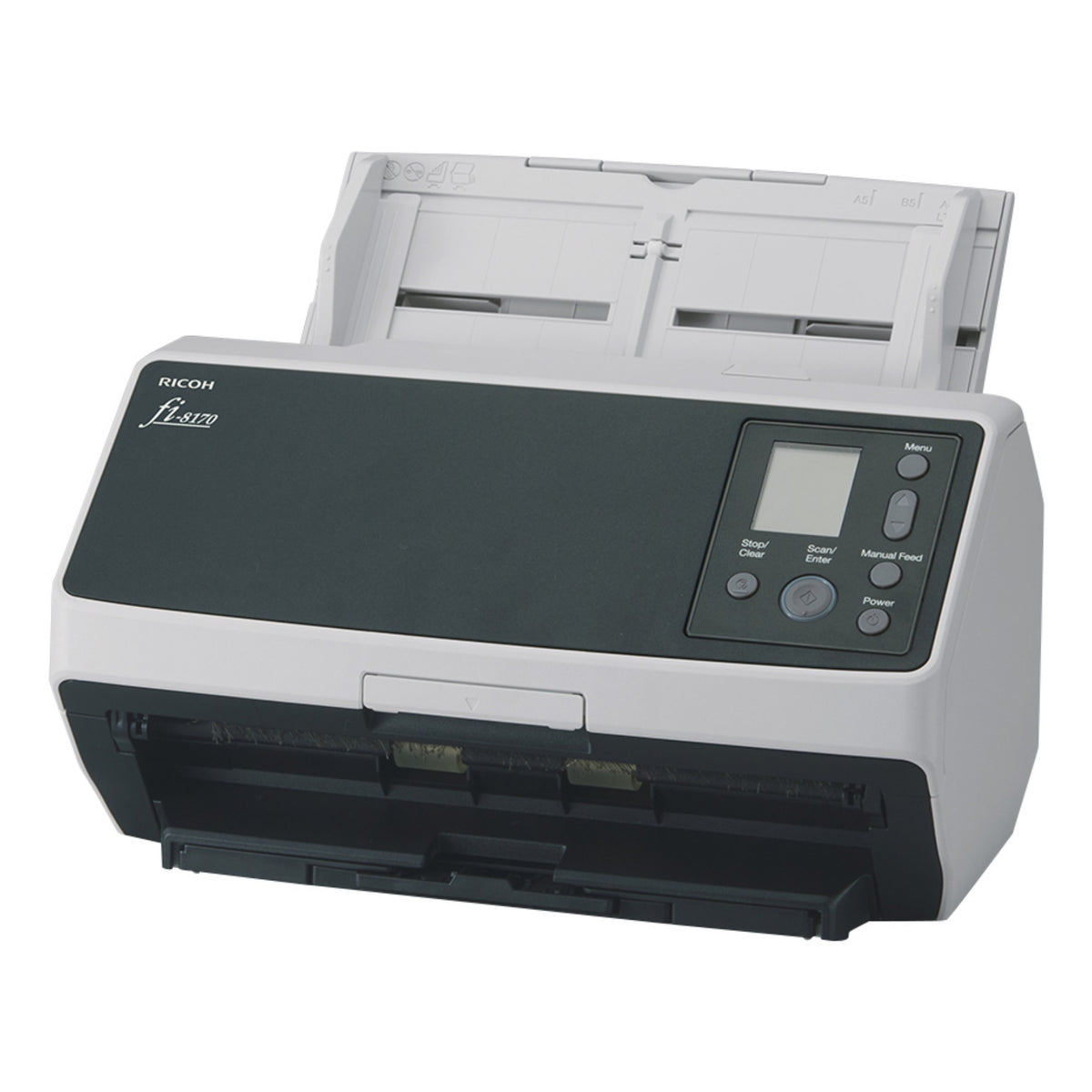

What's in the box.
The paper pile, gone by lunch.
Load up to 100 pages, press Scan/Enter, and the fi-8170 scans both sides of each at 70 pages a minute, in color, grayscale or black and white, at 200 or 300 dpi. Connect it by USB or put it on the network, and its TWAIN and ISIS drivers bring it into the document software you already run.
Mixed sizes, cards, passports, long pages.
The feeder takes anything from a 1.9 × 2 inch slip to a legal page in the same stack, from 5.3 lb tissue-weight paper to 124 lb card. Plastic cards up to 1.4 mm go through (embossed cards one at a time), and in Manual Feed Mode passports and booklets up to 7 mm thick feed without a carrier sheet. Long-page mode handles documents up to 240 inches.
An ultrasonic sensor and length detection stop the scan when two sheets feed together, and iSOP listens and watches for a page about to crumple. A manual feed mode handles items one at a time.
How much paper do you have?
Here's how long it takes.
Ricoh rates the fi-8170 at 70 pages a minute single-sided and 140 images a minute double-sided, at 200 or 300 dpi, in color, grayscale or black and white. Pick a day’s volume.
Rated speeds are for A4 portrait at 200 or 300 dpi; actual speed depends on the computer and software. Reloading the 100-sheet feeder adds time the arithmetic doesn’t include. 10,000 sheets is Ricoh’s expected daily volume.
Scans that need less fixing afterward.
PaperStream IP cleans every image as it comes off the sensors, and PaperStream Capture files the batch where it belongs.
From the feeder
- Ultrasonic + length detectionstops on a double feed
- iSOP paper protectionimage monitoring and sound detection
- Manual feedsingle or continuous, for fragile items
Into your software
- PaperStream IPTWAIN, TWAIN x64 and ISIS drivers
- PaperStream Capturebatch scanning to your destinations
- PaperStream ClickScanpress, scan, send to email, print or folder
For IT
- PaperStream NX Managerscan from the panel with no PC (CAL per scanner or user)
- PaperStream Central Adminmanage a fleet of scanners
- Same speed on the networkUSB or wired LAN, 70 ppm either way
USB or the network.
Plug it into a PC over USB 3.2, or give it its own Gigabit Ethernet connection and share it across the office; scanning speed is the same either way. The color LCD and buttons on the front run profiles and show the consumable counters.
- USB 3.2 Gen 1 and Gigabit EthernetUSB 2.0 and 1.1 compatible; 10/100/1000BASE-T on an RJ-45 port.
- Windows 11 and 10, Server 2016–2025PaperStream IP (TWAIN, TWAIN x64, ISIS) and a WIA driver. On Arm-based Windows 11, the 32-bit TWAIN driver only.
- macOS and LinuxRicoh’s Image Scanner Driver for macOS (ICA) and for Linux (SANE).
- Color LCDSettings, counters and errors on the scanner itself.
Built for a department.
The fi-8170 is Ricoh’s current departmental fi-series scanner, made for desks that scan all day and IT teams that look after many of them.
Consumables that last
Brake roller PA03810-0001 and the pick roller are replaced every 200,000 sheets; the scanner counts both.
Low power
28 W scanning, 17 W in Eco mode, 0.2 W in auto standby. ENERGY STAR and RoHS.
PC-less scanning
PaperStream NX Manager sends scans from the scanner’s panel straight to the network, no PC at the desk.
Fleet management
PaperStream Central Admin and fi Series Online Update keep drivers and firmware current.
Works with the software you already run.
TWAIN and ISIS are the interfaces document applications use. Ricoh also publishes a WIA driver and drivers for macOS and Linux.
A USB port or a network connection, and Ricoh’s PaperStream IP driver (a free download).
A separate flatbed for cards and passports, or a subscription for the bundled PaperStream software.
New, ready to connect.
This fi-8170 is sold New: a new scanner with its AC adapter, a USB 3.2 cable and an AnyHDD microfiber cloth.
Backed by AnyHDD's one-year warranty and 30-day returns, with free return shipping on defective items. We've supplied IT hardware to businesses since 2006.
Tech specs
As published by Ricoh (PFU) for the fi-8170.
| Model | Ricoh (Fujitsu) fi-8170, ADF with manual feed, duplex |
|---|---|
| Image sensor · light | CIS × 2 (front, back) · RGB LED × 2 |
| Speed | 70 ppm simplex / 140 ipm duplex, A4 portrait, 200 and 300 dpi, color, grayscale or monochrome |
| Optical resolution | 600 dpi; output 50–600 dpi, 1,200 dpi via driver |
| Output | 24-bit color, 8-bit grayscale, 1-bit monochrome |
| ADF capacity | 100 sheets, A4 80 g/m² or letter 20 lb |
| Document size | 1.9 × 2 in (48 × 50 mm) to 8.5 × 14 in; up to 9.5 in wide with the guide adjuster; long page to 240 in (200 dpi or less) |
| Paper weight | 20–465 g/m² (5.3–124 lb); A8 128–209 g/m²; plastic cards to 1.4 mm (embossed cards one at a time); passports and booklets to 7 mm (Manual Feed Mode) |
| Multifeed detection | Ultrasonic overlap and length detection; iSOP image and sound paper protection |
| Expected daily volume | 10,000 sheets |
| Interface | USB 3.2 Gen 1 / 2.0 / 1.1 (Type-B); Ethernet 10BASE-T/100BASE-TX/1000BASE-T |
|---|---|
| Drivers | PaperStream IP (TWAIN, TWAIN x64, ISIS), WIA, Image Scanner Driver for macOS (ICA) and Linux (SANE) |
| Software | PaperStream Capture, PaperStream ClickScan, PaperStream NX Manager, Software Operation Panel, Error Recovery Guide, PaperStream Central Admin |
| Operating systems | Windows 11, 10; Windows Server 2025, 2022, 2019, 2016; macOS; Linux (Ubuntu) |
| LCD | Color, 16 dots, 7 × 16 characters |
| Background | White or black, selectable |
| Power | 28 W operating (17 W Eco); sleep 2.0 W LAN / 1.4 W USB; 0.2 W auto standby |
| Environment | 41 to 95 °F (5 to 35 °C); 15–80% RH |
| Dimensions | 11.8 × 6.7 × 6.4 in (300 × 170 × 163 mm) without chute and stacker |
| Weight | 8.8 lb (4 kg) |
| Consumables | Brake roller PA03810-0001; pick roller PA03670-0022 on PA03810-B055 units: every 200,000 sheets |
| Environmental | ENERGY STAR, RoHS |
Sources: PFU (Ricoh) global fi-8170 product page (June 2026); fi-8170 Datasheet 2022.2; fi-8000 series Operator’s Guide P3PC-6982-08ENZ2.
Questions we get asked.
Does it work on Windows 11?
Yes. Ricoh lists Windows 11 and 10 and Windows Server 2016 to 2025. On Arm-based Windows 11 PCs only the 32-bit PaperStream IP (TWAIN) driver is supported; Arm-based Windows 10 and the ISIS driver are not.
Does it work with a Mac?
Ricoh publishes an Image Scanner Driver for macOS (ICA) and one for Linux (SANE). The full PaperStream IP cleanup features are on Windows.
Can I share it over the network?
Yes. It has a Gigabit Ethernet port alongside USB 3.2, and Ricoh’s Operator’s Guide states that scanning speed is the same over USB or wired LAN. PaperStream NX Manager lets users scan from the scanner’s own panel with no PC; it needs a Windows CAL per scanner or user.
When do the rollers need replacing?
Ricoh’s Operator’s Guide gives every 200,000 sheets for the brake roller (PA03810-0001) and the pick roller. Units with part number PA03810-B055 use pick roller PA03670-0022; the part number is on the label on the back.
Can it scan passports and ID cards?
Yes. In Manual Feed Mode, passports and booklets up to 7 mm thick feed without the Booklet Carrier Sheet. Plastic cards up to 1.4 mm feed too: up to 10 unembossed cards of 0.76 mm or less, or 5 up to 1.4 mm, at a time, and embossed cards one at a time.
What condition will mine arrive in?
This listing is new: it ships factory sealed in the manufacturer's original packaging, with the one-year AnyHDD warranty from the date of delivery.
What warranty is included?
It carries a one-year AnyHDD warranty from the date of delivery. Where applicable, it may also be eligible for the original manufacturer's warranty.
What is your return policy?
30 days for a full refund if it is not the right fit. Return shipping is covered on anything that arrives not as described.
Who is AnyHDD?
We've supplied IT hardware to businesses since 2006. Every unit is inspected and tested in our own building before it is listed.
