HP Thunderbolt 4 Ultra 280W G6 Docking Station, 330W, Quad Display Support, Includes USB-C Cable, HDMI Cable, DisplayPort Cable & Cleaning Cloth
Online ordering opens soon. Contact us for pricing and availability.

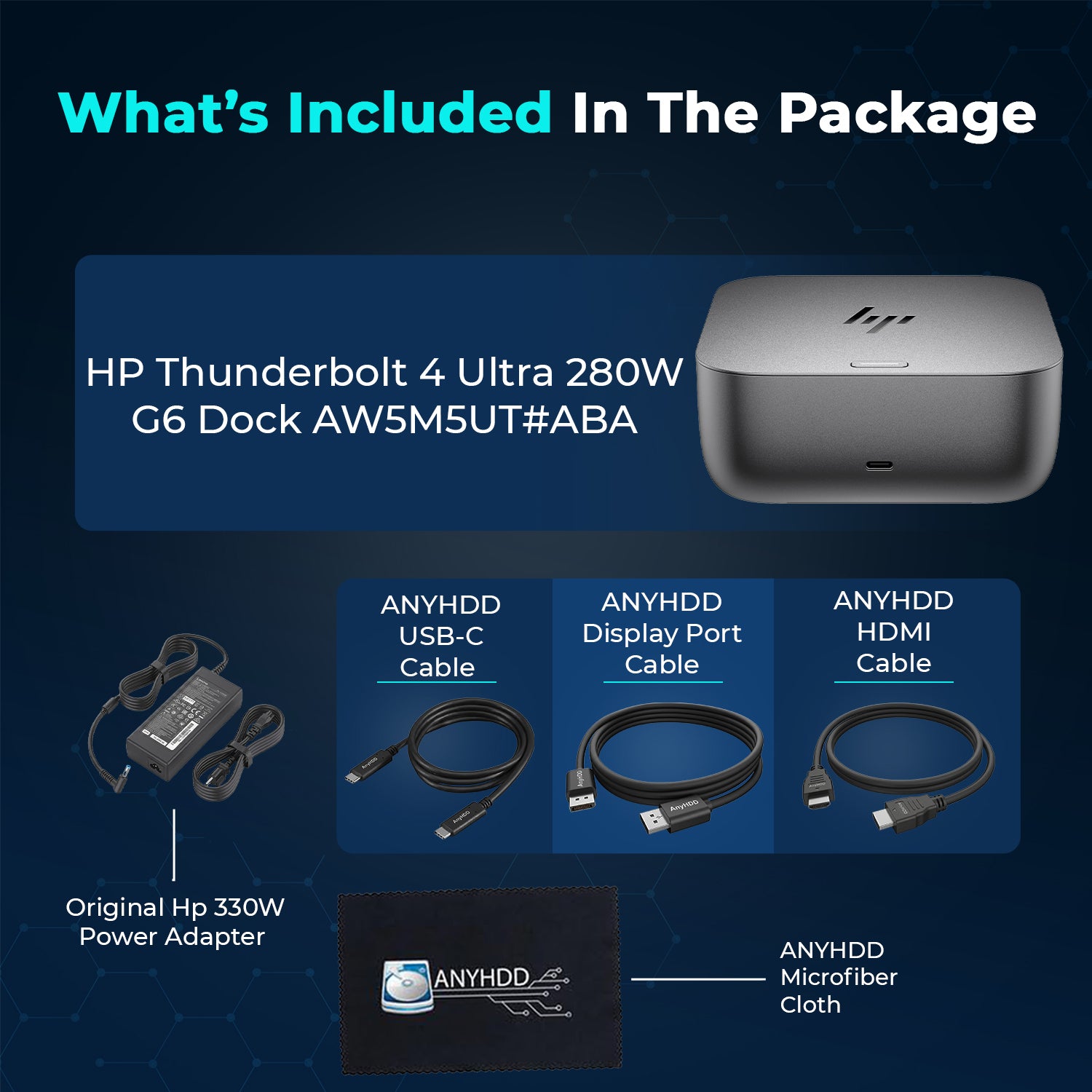

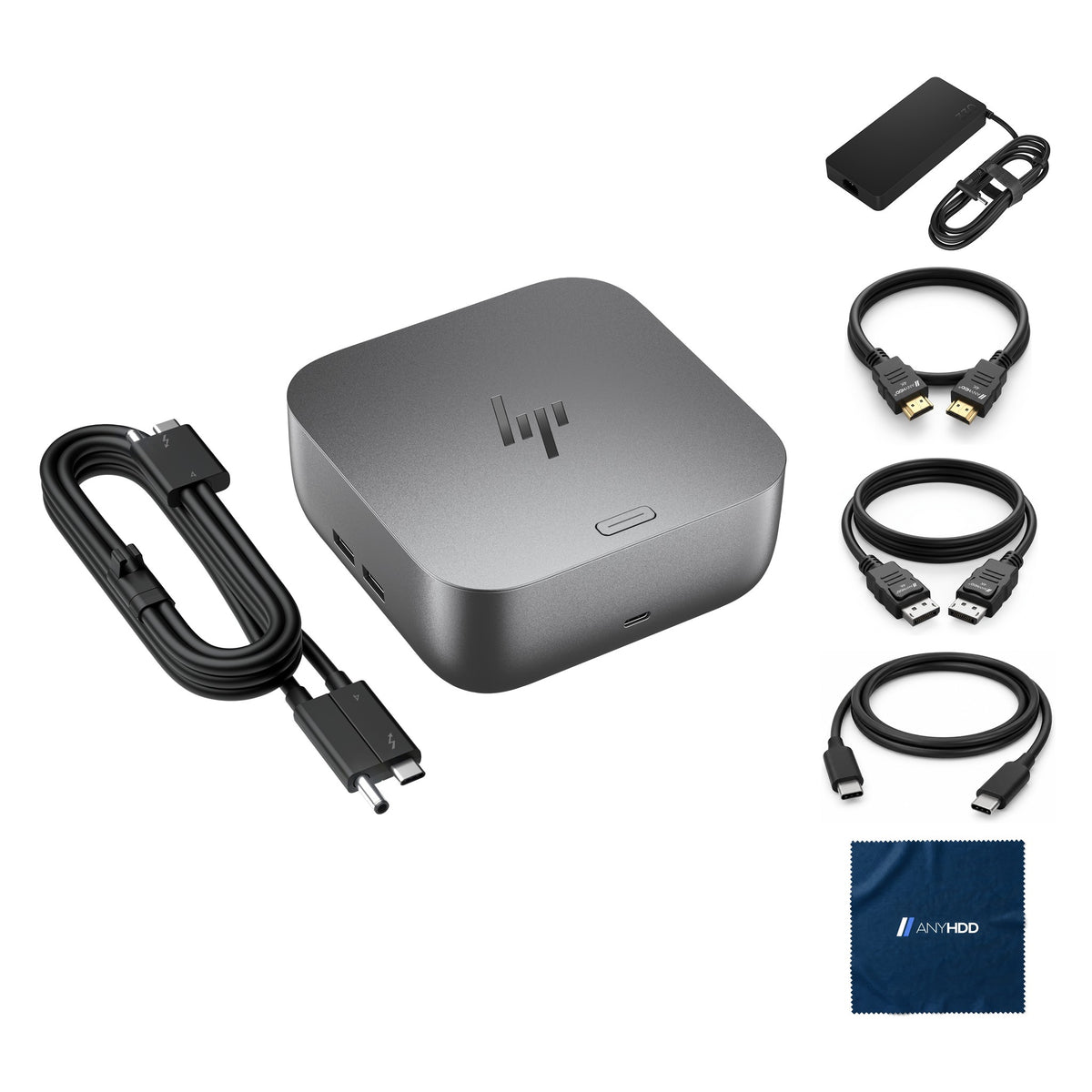

What's in the box.
The most power on the desk.
One combination cable feeds a workstation laptop up to 280 W, drives up to four displays, adds 2.5 GbE and eight USB ports, and lets IT manage it all from the cloud.
Workstation power, one cable.
The G6 runs from a 330 W adapter. Its combination cable carries Thunderbolt 4 and a 4.5 mm power barrel: up to 280 W reaches the laptop through the barrel, and up to 180 W through the Thunderbolt 4 connector alone, on HP and non-HP laptops that support USB Power Delivery 3.1.
Both USB-C ports give 15 W to a phone or headset, and all five USB-A ports charge.
Up to four displays.
Pick your laptop and layout.
Two DisplayPort 1.4, HDMI 2.1, a USB-C video port and Thunderbolt 4. Choose how your laptop connects and how many screens you run.
Figures are HP's published video resolutions for the G6 and all require DisplayPort 1.4 with Display Stream Compression on the laptop; actual output depends on the laptop's graphics. "Multi-function" and "high-resolution" are the two ways a USB-C laptop can drive the dock. HP lists up to three external displays plus the laptop screen, or up to four external displays.

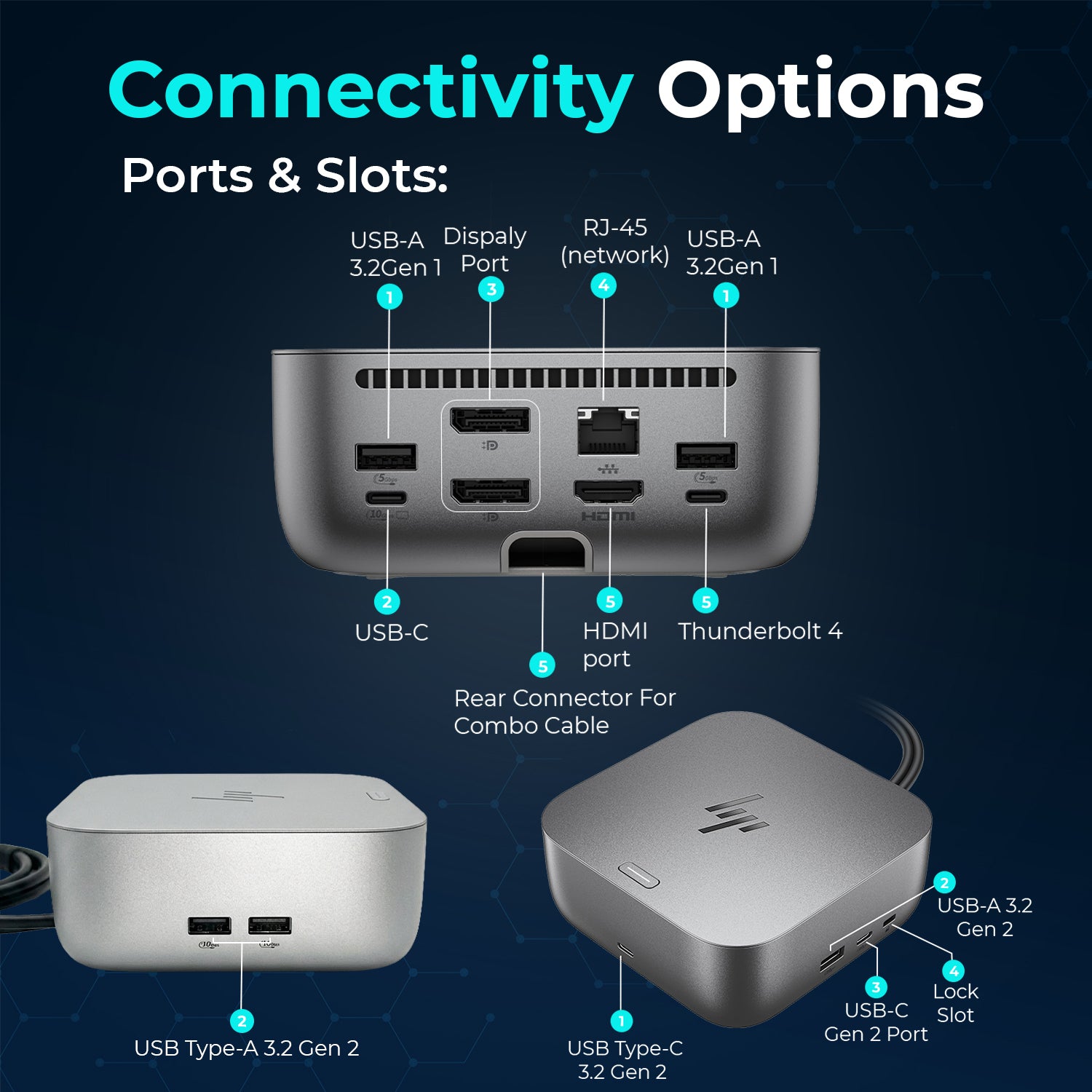

Every port, one cable.
Video, network and Thunderbolt 4 on the back; two USB-A on the left; USB-A, USB-C and the lock slot on the right; USB-C and the status bar up front.
Front And Right Side
Rear
Left side (not shown): two USB-A 10 Gbps charging ports.
Front, top and sides
- USB-C 10 Gbps × 2front and right, data and 15 W out
- USB-A 10 Gbps × 3charging, left × 2 and right × 1
- Host cable comboThunderbolt 4 + 4.5 mm barrel, 1 m
Rear — video
- DisplayPort 1.4 × 2DSC
- HDMI 2.1
- USB-C 10 GbpsDisplayPort Alt Mode
- Thunderbolt 4downstream
Rear — data
- USB-A 5 Gbps × 2charging
- RJ45 Ethernet2.5 Gbps
Wired where it counts.
2.5 Gb Ethernet gives a laptop that lives on Wi-Fi a fast, steady connection at the desk, with the manageability IT needs on HP laptops.
- 2.5 Gb EthernetRJ45 at up to 2.5 Gbps, on infrastructure that supports it.
- Wake on LAN and MAC pass-throughFrom off, sleep or hibernation on HP and HP-supported notebooks; some laptops only support these when on or asleep.
- Intel wired vProListed by HP among the dock's network manageability features.
- Disable LANIT can switch off the RJ45 port, part of HP's security case for the G6.
Built for the whole floor.
HP's top Thunderbolt 4 dock, with the management and security tools HP lists for the G6.
Poly Lens
Cloud and desktop management: schedule firmware updates, watch telemetry and configure docks in bulk.
HP CMSL and eTag
Script dock management with HP's Client Management Script Library and track docks by serial and MAC address.
HP Sure Start
Dock firmware is verified and recovered at start-up and disconnect, part of HP Wolf Security.
HP Quick Connect
Wakes select HP G11 and G12 laptops before the user sits down (Bluetooth required).
Works with what you already own.
Thunderbolt 3 or 4 laptops, USB4, and USB-C laptops with DisplayPort Alt Mode and Power Delivery. The 280 W path needs a laptop with HP's 4.5 mm power barrel input.
Thunderbolt, USB4, or USB-C with DisplayPort Alt Mode and Power Delivery. Up to 180 W over the Thunderbolt connector needs USB PD 3.1; up to 280 W needs the 4.5 mm barrel input.
HP Quick Connect, Wake on LAN from warm and cold dock and MAC address pass-through work on HP or HP-supported notebooks. Thunderbolt laptops need Thunderbolt software 17.x or later.
Factory sealed.
This one is new and sealed, so it skips the bench entirely. The dock stays in its sealed box; the cables and cloth in the bundle are packed alongside it.
New stock arrives sealed and stays that way, so there is no bench record to show.
It carries the same 1-year AnyHDD warranty as everything else on the site.
Tech specs
As published in HP's QuickSpecs for the Thunderbolt 4 Ultra 280W G6 Dock.
| Model | HP Thunderbolt 4 Ultra 280W G6 Dock (AW5M5UT) |
|---|---|
| Host connection | Thunderbolt 4 cable (40 Gbps) with 4.5 mm power barrel, 1 m |
| Video ports | 2 × DisplayPort 1.4 1 × HDMI 2.1 1 × USB-C 3.2 Gen 2 DisplayPort Alt Mode 1 × Thunderbolt 4 |
| External displays | Up to four, or three plus the laptop screen. Up to 8K, up to 360 Hz (DSC host) |
| USB-A ports | 3 × USB 3.2 Gen 2 (10 Gbps, left × 2, right × 1) and 2 × USB 3.2 Gen 1 (5 Gbps, rear), all charging |
| USB-C ports | 2 × USB 3.2 Gen 2 (10 Gbps), front and right, data and 15 W out |
| Network | 1 × RJ45, 2.5 Gbps |
| Security slot | 1 × Nano security slot |
| Power delivery to host | Up to 280 W through the 4.5 mm barrel, or up to 180 W through the Thunderbolt 4 cable (PD 3.1, HP and non-HP) |
|---|---|
| Power adapter | 330 W |
| Power button | Mechanical, with RGB LED, powers or wakes the host |
| LED indicators | Power button and front LED bar, RGB (white, blue, amber, green, red) |
| Operating systems | Windows 10 and 11, ChromeOS, macOS, Ubuntu Linux, ThinPro |
| Manageability | HP CMSL, disconnected firmware updates, eTag, PXE boot, Wake on LAN, MAC address pass-through, WLAN-LAN switching, Disable LAN, event messaging, Intel wired vPro, Poly Lens |
| Security | HP Wolf Security with HP Sure Start |
| Dimensions | 4.77 × 4.77 × 2 in (121.2 × 121.2 × 50.5 mm) |
| Weight | 1.43 to 1.76 lb (0.65 to 0.8 kg), as HP publishes it |
Sources: HP QuickSpecs, HP Thunderbolt 4 Ultra 280W G6 Dock (c09120492, v6, October 2025); HP data sheet c09125489; HP User Guide P04603-003.
Questions we get asked.
Which laptops get the full 280 W?
Laptops that take HP's 4.5 mm power barrel: the G6's combination cable delivers up to 280 W through the barrel. Over the Thunderbolt 4 connector alone, the dock delivers up to 180 W to HP and non-HP laptops that support USB Power Delivery 3.1. HP's QuickSpecs don't list which notebooks accept the barrel; check your laptop's HP spec sheet.
Will it work with my non-HP laptop?
Yes, over Thunderbolt 3 or 4, USB4, or USB-C with DisplayPort Alt Mode and Power Delivery. HP tested select Dell, Lenovo and Apple systems. HP Quick Connect, Wake on LAN from warm and cold dock and MAC address pass-through only work on HP or HP-supported notebooks; the power button works on non-HP laptops that implement the USB PD Extended Alert messages.
Does it work with a Mac?
HP lists macOS Sonoma 14 among the supported systems. HP doesn't provide Ethernet and audio drivers for Mac, and the display figures above depend on what the Mac's port supports.
What do I need for four displays?
A Thunderbolt laptop with DisplayPort 1.4 and Display Stream Compression: HP lists four 4K UHD displays at 60 Hz. USB-C laptops without Thunderbolt top out at three displays (see the selector above).
What is HP Quick Connect?
A feature that wakes your laptop and accessories as you approach the desk, so the session is ready when you sit down. HP supports it on select HP G11 Intel and G12 Intel and AMD notebooks; it needs Bluetooth and is switched on in the laptop's BIOS and on the dock.
