Lenovo ThinkPad Universal USB-C Docking Station 40AS0090US with 90W Adapter, HDMI & DisplayPort Cables for Multi-Device Productivity
Online ordering opens soon. Contact us for pricing and availability.

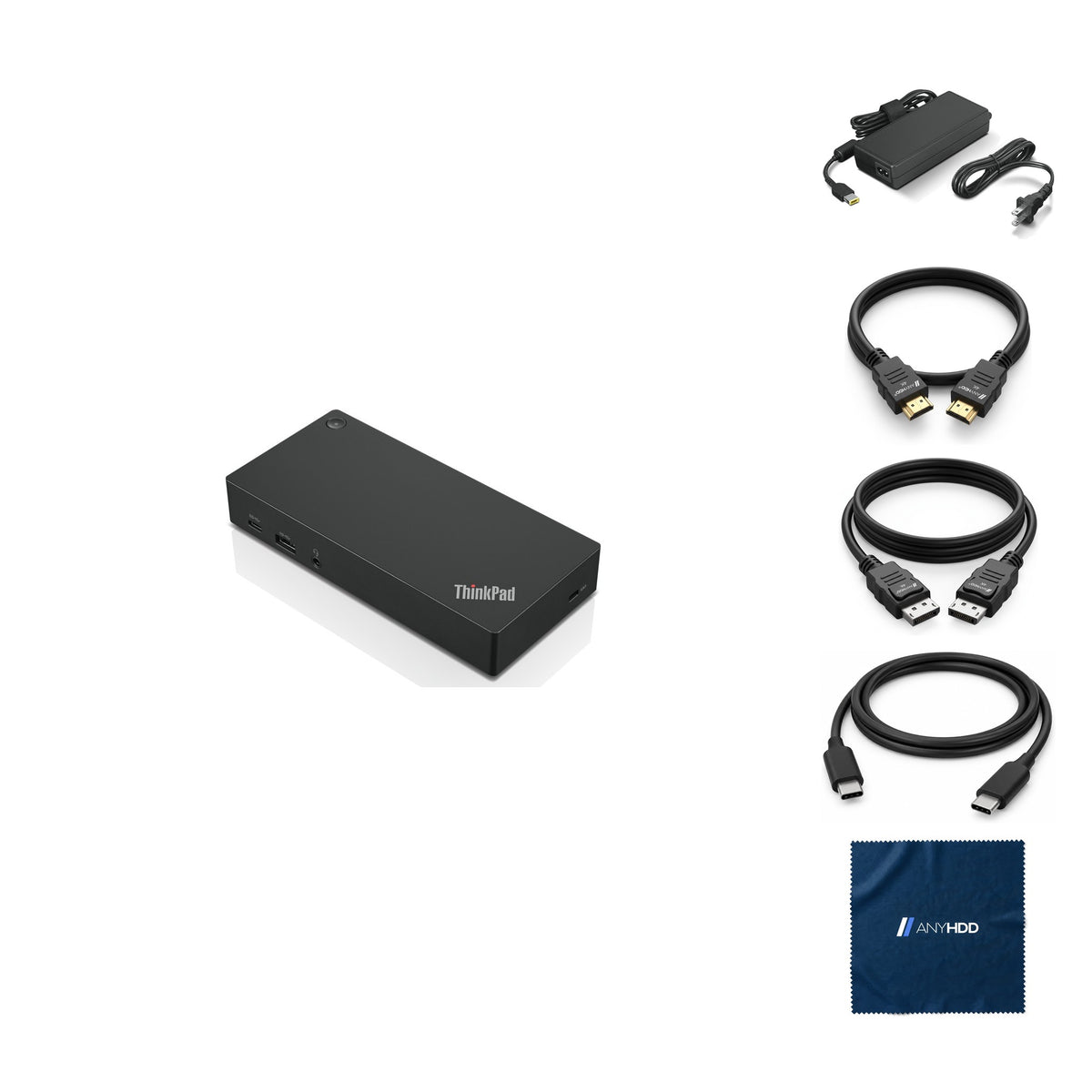

What's in the box.
One cable. A full ThinkPad desk.
Plug one USB-C cable into your laptop and the USB-C Dock Gen 2 adds up to three displays, wired Gigabit Ethernet, six USB ports and up to 60 W of charging.
Charges while it works.
The included 90 W adapter powers the dock and sends up to 60 W back up the USB-C cable to the laptop, as long as the laptop's USB-C port accepts charging. One cable carries power, displays, network and USB.
The rear Always On USB-A port keeps charging a phone or headset at up to 5 V / 3 A whenever the dock is on its adapter, with or without the laptop connected.
Up to three displays.
Pick your laptop and layout.
Two DisplayPort 1.4 and one HDMI 2.0. What you get depends on the DisplayPort version your laptop's USB-C port supports; choose it, then the number of screens.
Figures are Lenovo's published maximums from the dock's user guide. Lenovo notes that with three displays the resolution drops to 1080p, and the real output also depends on the laptop and the monitors.
Thirteen connections, front and back.
Video, network, power and four USB ports on the back; a USB-C, a USB-A and a headset jack up front.
Front
Rear
Front
- USB-C 3.1 Gen 210 Gbps · charges at 5 V / 3 A
- USB-A 3.1 Gen 210 Gbps
- Headset jack3.5 mm, 4-pole
Rear — video
- DisplayPort 1.4 × 24K 60 Hz on one display
- HDMI 2.0up to 4K
- USB-C host portto the laptop, 1 m cable
Rear — data and power
- USB-A 3.1 Gen 2 × 210 Gbps · one Always On, 5 V / 3 A
- USB-A 2.0 × 2for keyboard and mouse receivers
- Gigabit EthernetRJ45, link and activity LEDs
- Power in90 W adapter
Wired where it counts.
Gigabit Ethernet gives a laptop that lives on Wi-Fi a steady connection at the desk, and on supported ThinkPads the dock passes through the network tools IT already uses.
- Gigabit Ethernet10/100/1000 Mbps on RJ45, with link and activity LEDs.
- PXE bootStart a supported ThinkPad from the network through the dock.
- Wake-on-LANFrom sleep, hibernation and power off on selected ThinkPads.
- MAC address pass-throughThe laptop keeps its own MAC address through the dock on selected ThinkPads.
Built for the whole floor.
A ThinkPad dock designed for desks IT manages, not just plugs in once.
PXE boot
Image or start a supported ThinkPad over the network straight through the dock.
Wake-on-LAN
Wake selected ThinkPads from sleep, hibernation or power off for overnight updates.
Power button control
On selected ThinkPads the dock's button works as the laptop's own power button.
Always On charging
The rear Always On USB-A port charges a phone at 5 V / 3 A whenever the dock has power.
Works with USB-C laptops.
Lenovo built the Gen 2 for USB-C laptops that carry video over USB-C, and lists Windows as the supported system.
A USB-C port with DisplayPort video (DisplayPort 1.4 for 4K 60 Hz on one display). Charging needs a USB-C port that accepts power in.
The dock driver is preinstalled on compatible Lenovo computers. Otherwise it comes from lenovo.com/support/docks.
Renewed, the way we do it.
Every USB-C Dock Gen 2 goes through the same five stations before it's listed. If it doesn't pass, it doesn't ship.
Intake and identification
Model and machine type logged. Anything that isn't a genuine ThinkPad USB-C Dock Gen 2 is rejected here.
Full functional test
Every port loaded, all three video outputs driven, USB-C charging measured under load on a real laptop.
Firmware and reset
Latest Lenovo dock firmware applied. Settings returned to factory defaults.
Clean and grade
Housing cleaned and inspected. Cosmetic grade recorded.
Repack with the right adapter
Matched with a 90 W adapter and the cable set for this listing, packed in a new box.
Backed by AnyHDD's one-year warranty and 30-day returns, with free return shipping on defective items. We've supplied IT hardware to businesses since 2006.
Factory sealed.
This one is factory sealed, so it skips the bench entirely — it ships exactly as it left the manufacturer.
New stock arrives sealed and stays that way, so there is no bench record to show.
It carries the same 1-year AnyHDD warranty as everything else on the site.
Tech specs
As published in Lenovo's datasheet and user guide.
| Model | Lenovo ThinkPad USB-C Dock Gen 2 (40AS0090US) |
|---|---|
| Host connection | USB-C, 1 m USB-C cable |
| Video ports | 2 × DisplayPort 1.4 1 × HDMI 2.0 |
| External displays | Up to three |
| Maximum resolution | DP 1.4 laptop: 1 × 4K 60 Hz, 2 × 4K 30 Hz, 3 × 1080p 60 Hz DP 1.2 laptop: 1 × 4K 30 Hz, 2 × 1080p 60 Hz |
| USB-A ports | 3 × USB 3.1 Gen 2, 10 Gbps (1 front, 2 rear; one Always On, 5 V / 3 A) 2 × USB 2.0 (rear) |
| USB-C port | 1 × USB 3.1 Gen 2, 10 Gbps, 5 V / 3 A (front) |
| Network | Gigabit Ethernet (RJ45) |
|---|---|
| Power adapter | 90 W |
| Power delivery to laptop | Up to 60 W |
| Audio | 3.5 mm headset combo jack |
| Power button | Controls system power on selected ThinkPad laptops |
| Systems management | PXE boot, Wake-on-LAN, MAC address pass-through (selected ThinkPad laptops) |
| Dimensions | 171 × 80 × 30.75 mm (6.73 × 3.15 × 1.21 in) |
| Weight | 325 g (0.72 lb) |
| Operating systems | Windows (user guide lists Windows 7 and 10) |
Sources: Lenovo ThinkPad USB-C Dock Gen 2 datasheet (40AS0090XX); ThinkPad USB-C Dock Gen 2 User Guide (connectors, display resolutions, network functions); Lenovo PSREF (40AS0090EU, the same dock's EU part number) for dimensions and weight.
Questions we get asked.
Will it work with my non-Lenovo laptop?
Lenovo designed the Gen 2 for laptops whose USB-C port carries DisplayPort video, and its datasheet lists selected 2018 and 2019 ThinkPads as the supported systems. Lenovo's dock footnotes say its USB-C docks work with laptops that support the industry-standard USB-C Alt Mode, while MAC address pass-through, Wake-on-LAN and the mirrored power button may not be available on other brands.
The user guide lists Windows as the supported operating system; macOS isn't on Lenovo's list, so we don't recommend it for Mac desks.
How many monitors can I run, and at what resolution?
Up to three. With a laptop whose USB-C port supports DisplayPort 1.4: one display at 4K 60 Hz, two at 4K 30 Hz, or three at 1080p 60 Hz. With DisplayPort 1.2: one at 4K 30 Hz or two at 1080p 60 Hz. Lenovo's guide points out that three displays run at the lower resolution.
Does it charge my laptop?
Yes, up to 60 W over the USB-C cable from the included 90 W adapter. If the laptop doesn't charge, Lenovo's checklist is: use the dock's own adapter, power cord and USB-C cable, and make sure the laptop's USB-C port supports power input.
My wireless mouse or keyboard lags. What should I do?
Plug the 2.4 GHz receiver into one of the rear USB 2.0 ports, as Lenovo recommends. To wake the laptop from the keyboard or mouse, avoid the Always On USB-A port and use a USB 2.0 port instead.
A monitor stays blank. What should I check?
Make sure the laptop is awake (the dock's screens stay dark in sleep and hibernation), the dock is on its adapter and every cable is seated, and the dock driver is installed. Then try a lower resolution. If it persists, Lenovo suggests disconnecting the dock, reinstalling the driver from lenovo.com/support/docks and reconnecting.
How fast does it ship?
Every order ships with tracking. Delivery options and timing are shown at checkout.
What warranty comes with it?
One year from the date of delivery. It may also be eligible for the original manufacturer's warranty, but AnyHDD's own 1-year coverage applies either way.One year from the date of delivery, covered by AnyHDD.
What if I need to return it?
If it fails in the first 30 days, you choose replacement or refund. There is no restocking fee, and refunds go back to your original payment method. If the item arrived defective, damaged, or isn't what you ordered, AnyHDD pays the return shipping; for any other reason the return label is yours to cover.
Is anything left on the USB-C Dock Gen 2 from a previous owner?
No. Renewed units go through firmware and reset before they are listed: settings returned to factory defaults, and any stored settings cleared. We've supplied IT hardware to businesses since 2006.
Who is AnyHDD?
We've supplied business IT hardware since 2006: new and renewed docks, monitors, printers, scanners and storage. New stock ships in the manufacturer's sealed carton, with our cables and cloth packed alongside.
