Lenovo ThinkPad Universal USB-C Docking Station 40AY0090US with 90W Adapter, HDMI & DisplayPort Cables for Dual Monitor Support
Online ordering opens soon. Contact us for pricing and availability.

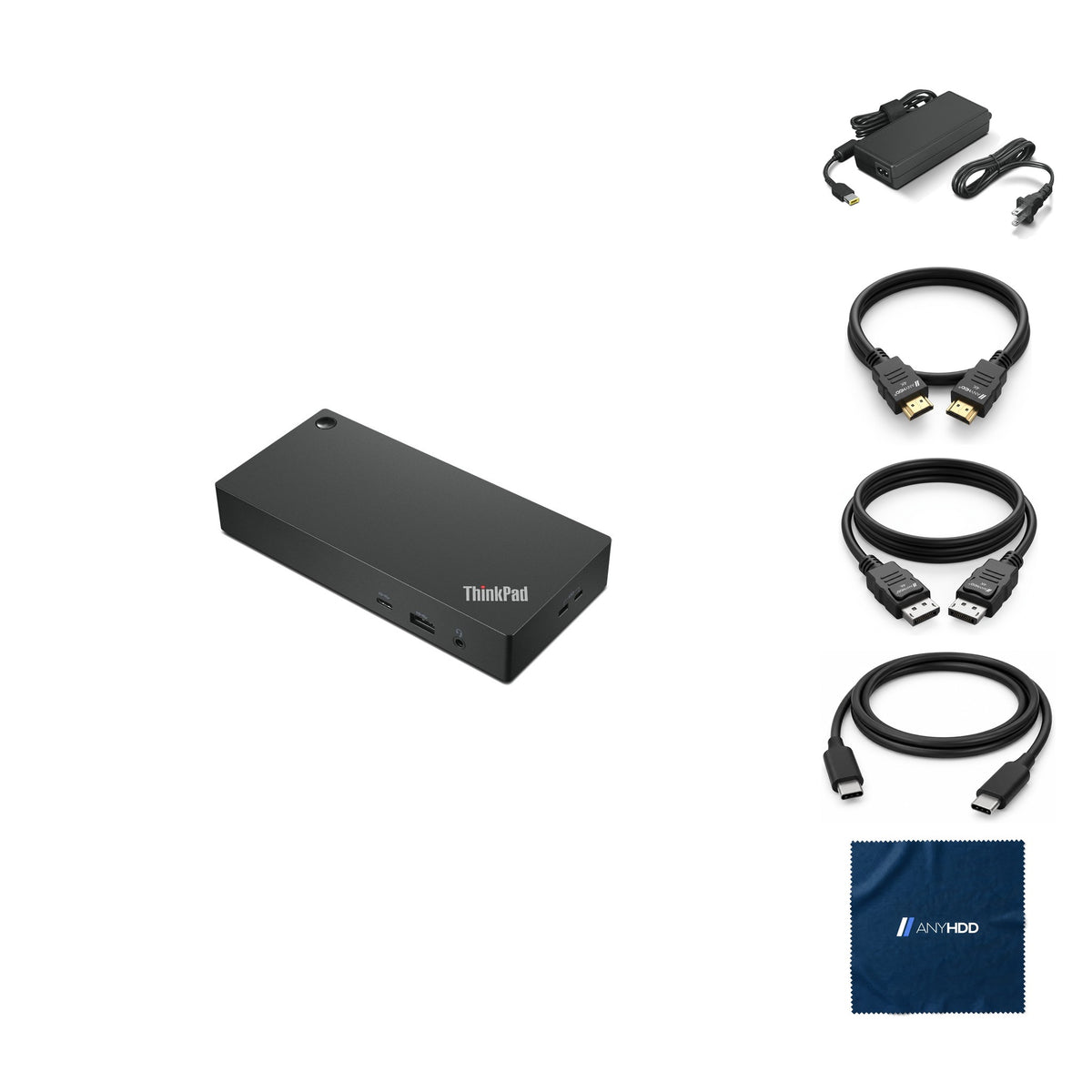

What's in the box.
One dock for any USB-C laptop.
Plug one USB-C cable into a USB-C, USB4 or Thunderbolt laptop and the Universal USB-C Dock adds up to three 4K displays, Gigabit Ethernet, six USB ports and up to 65 W of charging.
Charges while it works.
The included 90 W adapter powers the dock and sends up to 65 W back up the USB-C cable to the laptop, as long as the laptop's USB-C port accepts charging. Lenovo notes that 100 W charging needs its 135 W slim-tip adapter, sold separately.
The rear Always On USB-A port keeps charging a phone or headset at up to 5 V / 2.4 A whenever the dock is on its adapter, and the front USB-C supplies 5 V / 3 A.
Up to three 4K displays.
Pick your layout.
Two DisplayPort 1.4 and one HDMI 2.0. Choose how many screens to see Lenovo's maximum for each.
Figures are Lenovo's published maximums from the dock's user guide, which notes they depend on the USB-C or Thunderbolt port on your computer. Each monitor's own capabilities also apply.
Thirteen connections, front and back.
Video, network, power and four USB ports on the back; a USB-C, a USB-A and a headset jack up front.
Front
Rear
Front
- USB-C 10 Gbpscharges at 5 V / 3 A
- USB-A 3.2 Gen 210 Gbps
- Headset jack3.5 mm combo
Rear — video
- DisplayPort 1.4 × 24K 60 Hz
- HDMI 2.04K 60 Hz
- USB-C host portto the laptop, 1 m cable
Rear — data and power
- USB-A 3.2 Gen 2 × 210 Gbps · one Always On, 5 V / 2.4 A
- USB-A 2.0 × 2for keyboard and mouse receivers
- Gigabit EthernetRJ45, link and activity LEDs
- Power in90 W adapter
Wired where it counts.
Gigabit Ethernet gives a laptop that lives on Wi-Fi a steady connection at the desk, and on supported ThinkPads the dock passes through the network tools IT already uses.
- Gigabit Ethernet10/100/1000 Mbps on RJ45, with link and activity LEDs.
- PXE bootStart a supported computer from the network through the dock.
- Wake-on-LANIncluding Wake on LAN from Dock, depending on the computer.
- MAC address pass-throughThe laptop keeps its own MAC address through the dock on most ThinkPads.
Easy for IT to keep current.
Built for mixed fleets and home offices: firmware updates itself, and the usual IT tools work through it.
Silent firmware updates
Lenovo Dock Manager installs dock firmware without interrupting the user.
PXE boot and Wake-on-LAN
Image, start and wake supported computers over the network through the dock.
MAC address pass-through
The laptop keeps its own MAC address on the network on most ThinkPads.
Always On charging
The rear Always On USB-A port charges a phone at 5 V / 2.4 A whenever the dock has power.
Works with USB-C, USB4 and Thunderbolt laptops.
Lenovo lists USB-C, USB4, Thunderbolt 3 and Thunderbolt 4 laptops running Windows 10 and later.
A USB-C port with DisplayPort video (USB-C Alt Mode), or USB4 or Thunderbolt. Charging needs a USB-C port that accepts power in.
The dock driver, and Lenovo Dock Manager for silent firmware updates, from Lenovo support. MAC pass-through, Wake-on-LAN and the mirrored power button may not be available on non-Lenovo laptops.
Renewed, the way we do it.
Every Universal USB-C Dock goes through the same five stations before it's listed. If it doesn't pass, it doesn't ship.
Intake and identification
Model and machine type logged. Anything that isn't a genuine ThinkPad Universal USB-C Dock is rejected here.
Full functional test
Every port loaded, all three video outputs driven, USB-C charging measured under load on a real laptop.
Firmware and reset
Latest Lenovo dock firmware applied. Settings returned to factory defaults.
Clean and grade
Housing cleaned and inspected. Cosmetic grade recorded.
Repack with the right adapter
Matched with a 90 W adapter and the cable set for this listing, packed in a new box.
Backed by AnyHDD's one-year warranty and 30-day returns, with free return shipping on defective items. We've supplied IT hardware to businesses since 2006.
Factory sealed.
This one is factory sealed, so it skips the bench entirely — it ships exactly as it left the manufacturer.
New stock arrives sealed and stays that way, so there is no bench record to show.
It carries the same 1-year AnyHDD warranty as everything else on the site.
Tech specs
As published in Lenovo's datasheet and user guide.
| Model | Lenovo ThinkPad Universal USB-C Dock (40AY0090US) |
|---|---|
| Host connection | USB-C, 1 m USB-C cable |
| Video ports | 2 × DisplayPort 1.4 1 × HDMI 2.0 |
| External displays | Up to three |
| Maximum resolution | 1 or 2 displays: 4K 60 Hz 3 displays: 4K 30 Hz |
| USB-A ports | 3 × USB 3.2 Gen 2, 10 Gbps (1 front, 2 rear; one Always On, 5 V / 2.4 A) 2 × USB 2.0 (rear) |
| USB-C port | 1 × 10 Gbps, 5 V / 3 A (front) |
| Network | Gigabit Ethernet (RJ45) |
|---|---|
| Power adapter | 90 W |
| Power delivery to laptop | Up to 65 W (100 W with a 135 W adapter, sold separately) |
| Audio | 3.5 mm combo jack |
| Systems management | Lenovo Dock Manager; PXE boot, Wake-on-LAN, MAC address pass-through |
| Security | Kensington MicroSaver and NanoSaver lock slots |
| Dimensions | 171 × 80 × 30 mm (6.73 × 3.15 × 1.18 in) |
| Weight | Starting at 325 g (0.72 lb) |
| Operating systems | Windows 10 and later |
Sources: Lenovo ThinkPad Universal USB-C Dock datasheet (40AY0090xx); ThinkPad Universal USB-C Dock User Guide (connectors, display resolutions, network functions).
Questions we get asked.
Will it work with my non-Lenovo laptop?
Lenovo designed the Universal USB-C Dock for most Windows 10 and later laptops with USB-C, USB4, Thunderbolt 3 or Thunderbolt 4, as long as the port carries video (USB-C Alt Mode). MAC address pass-through, Wake-on-LAN and the mirrored power button may not be available on other brands. macOS isn't on Lenovo's list.
How many monitors can I run, and at what resolution?
Up to three. One or two displays run at up to 4K 60 Hz; with all three video ports in use, each runs at up to 4K 30 Hz. Lenovo notes the result also depends on the USB-C or Thunderbolt port on your computer.
Does it charge my laptop?
Yes, up to 65 W over the USB-C cable from the included 90 W adapter. For up to 100 W, Lenovo sells a 135 W slim-tip adapter separately. If the laptop doesn't charge, make sure you're using the dock's adapter and cable and that the laptop's USB-C port supports power input.
My wireless mouse or keyboard lags. What should I do?
Plug the 2.4 GHz receiver into one of the rear USB 2.0 ports, as Lenovo recommends. To wake the computer from the keyboard or mouse, use a USB 2.0 port rather than the Always On USB-A port.
A monitor stays blank. What should I check?
Make sure the laptop is awake (screens stay dark in sleep and hibernation), the dock is on its adapter and every cable is seated, and the dock driver is installed. Then try a lower resolution. If it persists, disconnect the dock, reinstall the driver and reconnect.
How fast does it ship?
Every order ships with tracking. Delivery options and timing are shown at checkout.
What warranty comes with it?
One year from the date of delivery. It may also be eligible for the original manufacturer's warranty, but AnyHDD's own 1-year coverage applies either way.One year from the date of delivery, covered by AnyHDD.
What if I need to return it?
If it fails in the first 30 days, you choose replacement or refund. There is no restocking fee, and refunds go back to your original payment method. If the item arrived defective, damaged, or isn't what you ordered, AnyHDD pays the return shipping; for any other reason the return label is yours to cover.
Is anything left on the Universal USB-C Dock from a previous owner?
No. Renewed units go through firmware and reset before they are listed: settings returned to factory defaults, and any stored settings cleared. We've supplied IT hardware to businesses since 2006.
Who is AnyHDD?
We've supplied business IT hardware since 2006: new and renewed docks, monitors, printers, scanners and storage. New stock ships in the manufacturer's sealed carton, with our cables and cloth packed alongside.
