New
Lenovo Universal Thunderbolt Dock 40AN0135US 135W Power Delivery with Dual UHD 4K Display Support, HDMI, USB, Ethernet & USB‑C Connectivity
Online ordering opens soon. Contact us for pricing and availability.

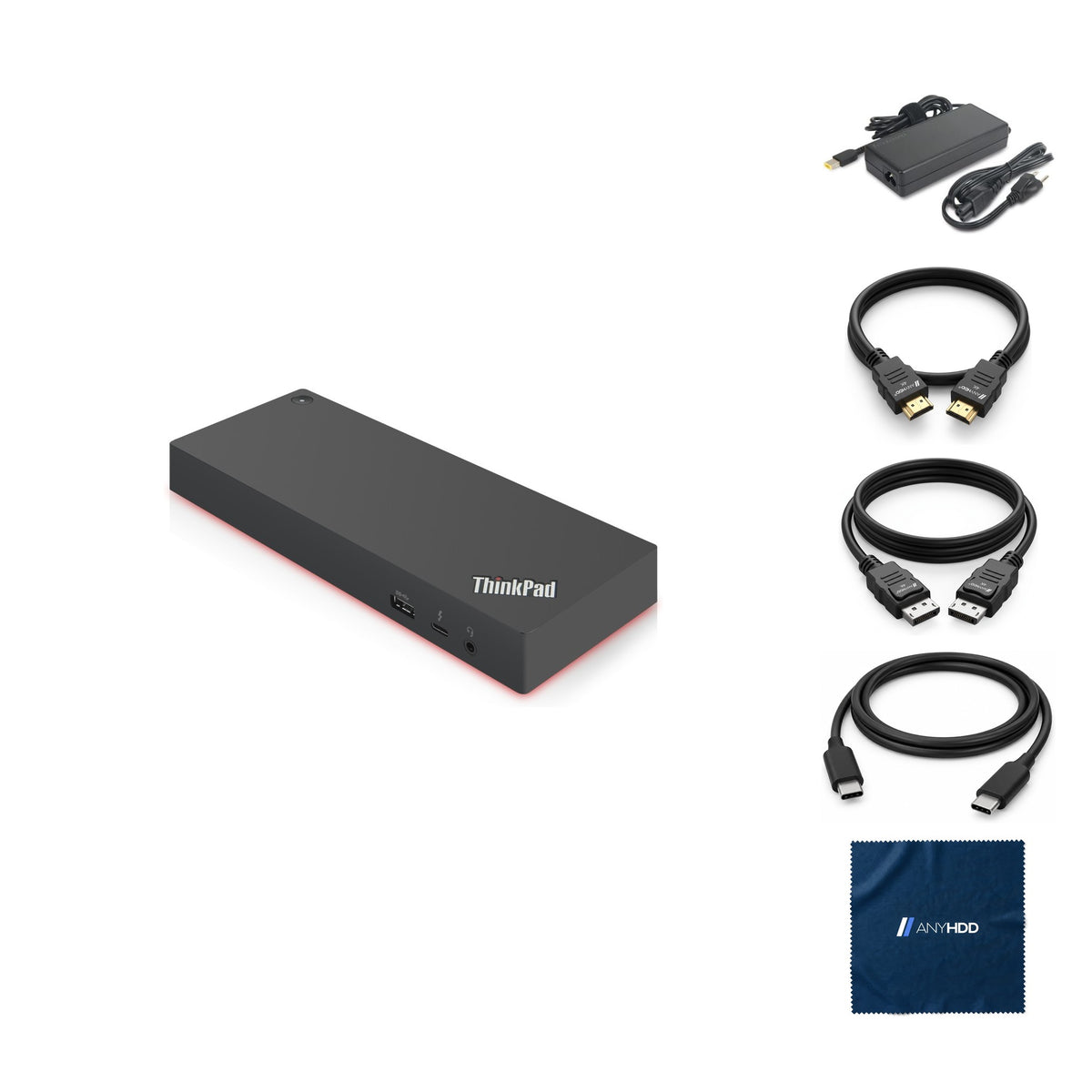

What's in the box.
Thunderbolt speed. One cable.
Connect a Thunderbolt 3 or USB-C laptop with one cable and the Thunderbolt 3 Dock Gen 2 adds up to three 4K displays, Gigabit Ethernet, five 10 Gbps USB ports and 65 W of charging.
Charges while it works.
The dock runs from its 135 W ThinkPad slim-tip adapter and sends 65 W to Thunderbolt 3 and USB-C laptops over the same cable that carries the displays and data.
The rear Always On USB-A port charges a phone or headset whenever the dock is on its adapter. On selected ThinkPads, the dock's power button works as the laptop's own power button.
Up to three 4K displays.
Pick your laptop and layout.
Two DisplayPort and two HDMI on the back (up to two rear displays) and a front Thunderbolt 3 port that also carries video. Choose how your laptop connects, then the number of screens.
Figures are Lenovo's published maximums from the dock's user guide and datasheet. The rear ports drive up to two displays: don't use the DisplayPort and HDMI of the bracketed pair together (only the DisplayPort monitor stays on). Results also depend on the laptop and monitors.
Fourteen connections, front and back.
Video, network, power and four USB-A on the back; a USB-A, a Thunderbolt 3 port and a headset jack up front.
Front
Rear
Unlabeled openings on the rear are for the Workstation version of this chassis.
Front
- USB-A 3.1 Gen 210 Gbps · best for a wireless receiver
- Thunderbolt 3 USB-Cdevices, charging and a display; not for the laptop
- Headset jack3.5 mm, 4-pole
Rear — video
- DisplayPort × 2up to 4K 60 Hz
- HDMI × 2not with the DisplayPort of the bracketed pair
- Thunderbolt 3 host portto the laptop, 0.7 m cable
Rear — data and power
- USB-A 3.1 Gen 2 × 410 Gbps · one Always On
- Gigabit EthernetRJ45
- Power in135 W slim tip
Wired where it counts.
Gigabit Ethernet gives a laptop that lives on Wi-Fi a steady connection at the desk, and with ThinkPad laptops the dock passes through the network tools IT already uses.
- Gigabit EthernetRJ45.
- PXE bootStart a supported ThinkPad from the network through the dock.
- Wake-on-LANWake on LAN and Wake on LAN from Dock, from a variety of power states.
- MAC address pass-throughThe dock uses the laptop's own MAC address on the network.
Built for the whole floor.
A ThinkPad dock designed for desks IT manages, not just plugs in once.
PXE boot
Image or start a supported ThinkPad over the network straight through the dock.
Wake-on-LAN
Wake on LAN or Wake on LAN from Dock, for overnight updates on supported ThinkPads.
MAC address pass-through
The dock takes the laptop's MAC address, so network policies keep working.
Power button control
With the laptop connected, the dock's button works as the laptop's own power button.
Works with Thunderbolt 3 and USB-C laptops.
Lenovo built the Gen 2 for 2017 and 2018 ThinkPad Thunderbolt 3 and USB-C notebooks and lists Windows 10 and Windows 7.
A Thunderbolt 3 port for 4K 60 Hz and three displays; a USB-C port with video gets the rear ports, at up to 4K 30 Hz.
The dock driver from lenovo.com/support/docks. Displays come on once Windows has started.
Renewed, the way we do it.
Every Thunderbolt 3 Dock Gen 2 goes through the same five stations before it's listed. If it doesn't pass, it doesn't ship.
Intake and identification
Model and machine type logged. Anything that isn't a genuine ThinkPad Thunderbolt 3 Dock Gen 2 is rejected here.
Full functional test
Every port loaded, all three video outputs driven, Thunderbolt charging measured under load on a real laptop.
Firmware and reset
Latest Lenovo dock firmware applied. Settings returned to factory defaults.
Clean and grade
Housing cleaned and inspected. Cosmetic grade recorded.
Repack with the right adapter
Matched with a 135 W adapter and the cable set for this listing, packed in a new box.
Backed by AnyHDD's one-year warranty and 30-day returns, with free return shipping on defective items. We've supplied IT hardware to businesses since 2006.
Factory sealed.
This one is factory sealed, so it skips the bench entirely — it ships exactly as it left the manufacturer.
New stock arrives sealed and stays that way, so there is no bench record to show.
It carries the same 1-year AnyHDD warranty as everything else on the site.
Tech specs
As published in Lenovo's datasheet and user guide.
| Model | Lenovo ThinkPad Thunderbolt 3 Dock Gen 2 (40AN0135US) |
|---|---|
| Host connection | Thunderbolt 3 (USB-C), 0.7 m Thunderbolt cable |
| Video ports | 2 × DisplayPort, 2 × HDMI (two rear outputs at a time) 1 × Thunderbolt 3 downstream (front) |
| External displays | Up to three 4K |
| Maximum resolution | Thunderbolt 3 laptop: 3840 × 2160 at 60 Hz USB-C laptop: 3840 × 2160 at 30 Hz |
| USB-A ports | 5 × USB 3.1 Gen 2, 10 Gbps (1 front, 4 rear; one Always On) |
| USB-C port | 1 × Thunderbolt 3 downstream (front), data, charging and video |
| Network | Gigabit Ethernet (RJ45) |
|---|---|
| Power adapter | 135 W ThinkPad slim tip |
| Power delivery to laptop | 65 W (Thunderbolt 3 and USB-C) |
| Audio | 3.5 mm headset combo jack |
| Systems management | PXE boot, Wake-on-LAN, MAC address pass-through; power button works as the laptop's |
| Security | 1 × Kensington lock slot |
| Dimensions | 220 × 80 × 30 mm (8.66 × 3.15 × 1.18 in) |
| Weight | 525 g (1.16 lb) |
| Operating systems | Windows 10, Windows 7 |
Sources: Lenovo ThinkPad Thunderbolt 3 Dock Gen 2 datasheet (40AN0135xx); ThinkPad Thunderbolt 3 Dock Gen 2 User Guide (connectors, video outputs, maximum resolutions, network).
Questions we get asked.
Will it work with my non-Lenovo laptop?
Lenovo lists 2017 and 2018 ThinkPad Thunderbolt 3 and USB-C notebooks on Windows 10 or Windows 7. Lenovo doesn't list other brands for this dock, and its setup poster says to use the dock only with a Lenovo or ThinkPad notebook. macOS isn't on Lenovo's list.
How many monitors can I run, and at what resolution?
With a Thunderbolt 3 laptop, up to three 4K displays at 60 Hz: two from the rear (not both ports of the bracketed DisplayPort/HDMI pair) and one on the front Thunderbolt 3 port. With a USB-C laptop, the rear ports drive up to two displays at up to 4K 30 Hz; the front Thunderbolt 3 port can't drive a display.
Why does one of my monitors go dark when I plug in both DisplayPort and HDMI?
Lenovo marks one rear DisplayPort/HDMI pair with a bracket. If you use both ports of that pair at the same time, only the DisplayPort monitor stays on. Use one of those two ports, plus another rear port for a second display.
Can I connect my laptop to the front USB-C port?
No. The front Thunderbolt 3 port is for devices and a display; Lenovo says not to connect the computer to it. The laptop connects to the rear host port with the Thunderbolt cable.
My laptop isn't charging, or the dock does nothing.
The dock always needs its own adapter: it is not powered by the laptop. Make sure the 135 W adapter that came with the dock is connected and the dock driver is installed, then check the laptop's Thunderbolt or USB-C port.
How fast does it ship?
Every order ships with tracking. Delivery options and timing are shown at checkout.
What warranty comes with it?
One year from the date of delivery. It may also be eligible for the original manufacturer's warranty, but AnyHDD's own 1-year coverage applies either way.One year from the date of delivery, covered by AnyHDD.
What if I need to return it?
If it fails in the first 30 days, you choose replacement or refund. There is no restocking fee, and refunds go back to your original payment method. If the item arrived defective, damaged, or isn't what you ordered, AnyHDD pays the return shipping; for any other reason the return label is yours to cover.
Is anything left on the Thunderbolt 3 Dock Gen 2 from a previous owner?
No. Renewed units go through firmware and reset before they are listed: settings returned to factory defaults, and any stored settings cleared. We've supplied IT hardware to businesses since 2006.
Who is AnyHDD?
We've supplied business IT hardware since 2006: new and renewed docks, monitors, printers, scanners and storage. New stock ships in the manufacturer's sealed carton, with our cables and cloth packed alongside.
