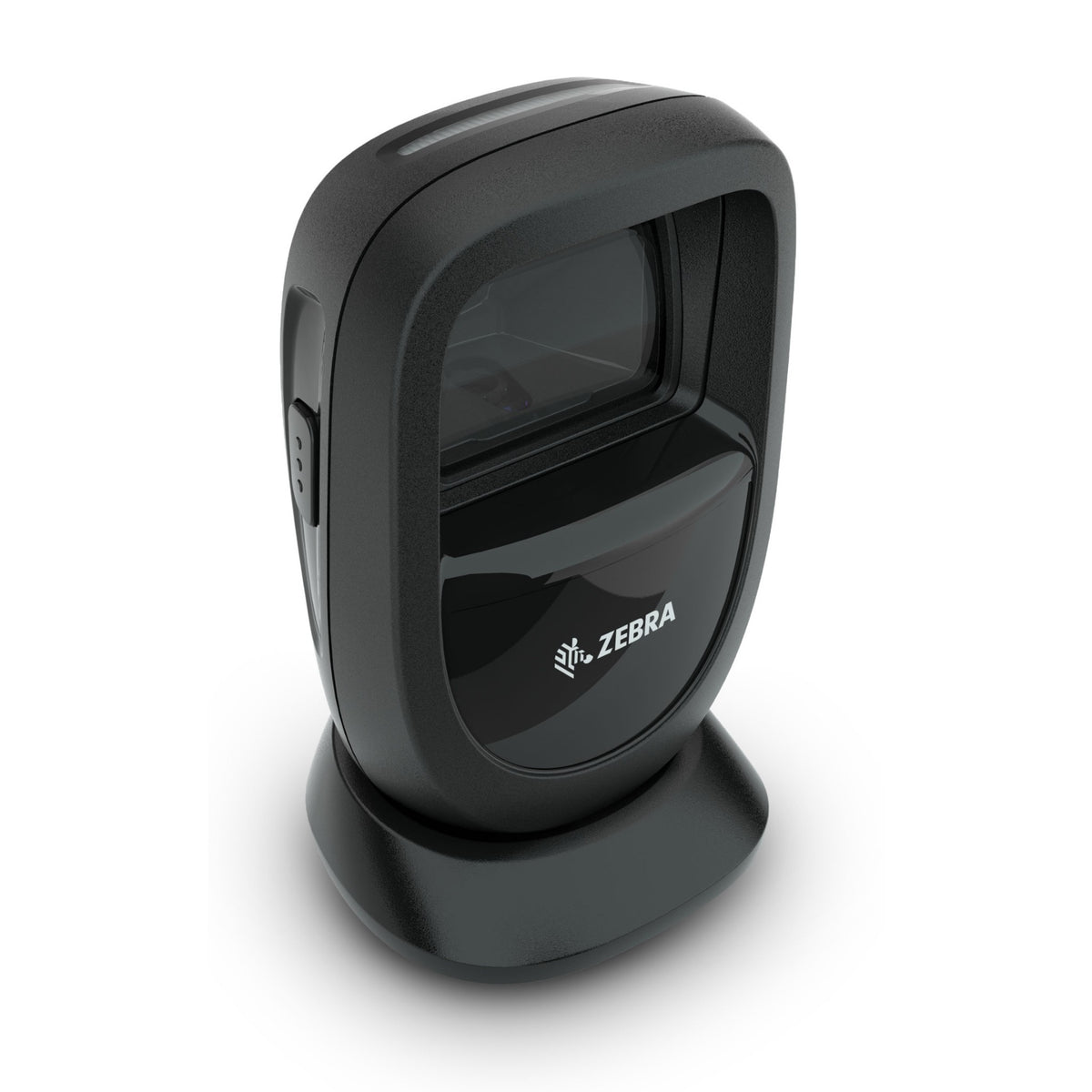

Zebra DS9308 Presentation Barcode Scanner
1D & 2D Imager, USB-A Interface
Online ordering opens soon. Contact us for pricing and availability.
What's in the box.
Reads anything you hold up to it.
The DS9308 sits on the counter and reads whatever passes its window, a UPC, a QR code on a phone, a coupon, a driver’s license, without anyone lining it up. A megapixel sensor and Zebra’s PRZM decoding handle crinkled, faded and low-contrast codes, on a base with a near-zero footprint.
Codes it shouldn’t be able to read.
An 800 MHz processor, a 1280 × 800 sensor and Zebra’s PRZM imaging read poorly printed, damaged, crinkled, faded and truncated codes, DotCode and dotted Data Matrix through cellophane, and codes on a glossy phone screen. The curved exit window cuts the reflections that blind other scanners.
Preferred Symbol picks the one barcode you want from a crowded label, and Multi-Code Data Formatting reads several codes in one pass and sends them in the order your software expects.
Pick what you'll scan.
See how far away it reads.
Zebra publishes a typical decode range for each barcode type. Choose one to see it drawn to scale.
Ranges are Zebra’s typical figures for the DS9300 series at the stated barcode resolution; printing resolution, contrast, barcode width and ambient light affect real-world results.
Hands-free by design. A trigger when you need it.
Set it on the counter and it reads whatever is presented. Pick it up and press the trigger for items too big to bring to the scanner.
On the counter
- Presentation modereads codes as they pass the window
- Swipe speedup to 120 in/s on a 13 mil UPC, optimized mode
- Ratcheting basefour positions, 15° back to 45° forward
Off the counter
- Scan triggerfor handheld scanning
- Feedbackgood-decode and rear-view LEDs, adjustable beeper
- Document captureA6 and smaller, in handheld mode
Built for the counter
- 5 ft dropsmultiple, to concrete
- 1,000 tumblesin a 1.5 ft tumbler
- IP52spill-proof base, concealed beeper hole
Plug it in. It types.
Over USB the DS9308 starts as a keyboard, so every scan lands as typed characters in whatever field is active, a point-of-sale app, a spreadsheet or a browser. Zebra’s auto-host-detect cables recognize the interface for you.
- USB keyboard by defaultThe scanner autodetects a USB host and defaults to the HID keyboard interface.
- Also RS-232, keyboard wedge, IBM 46XXWith the matching Zebra cable.
- Works with DS9208 cablesBackwards compatible with DS9208 cables and power supplies.
- Checkpoint EAS (EAS models)On Checkpoint EAS configurations (DS9308-…ZC…), one pass scans and deactivates the tag.
One scanner for every lane.
The DS9300 series is Zebra’s compact presentation imager, made to be deployed by the dozen and managed remotely.
Ready out of the box
Optimized default settings, auto-host-detect cables and over 90 international keyboards.
Fleet configuration
123Scan stages or updates scanners with one barcode; Scanner Management Service or WMI manages them remotely.
Driver’s license parsing
On DS9308-DL models, parses the PDF417 on North American licenses to verify age or fill in loyalty and credit applications.
Upgrade path
Takes DS9208 cables and power supplies, so replacing an older DS9208 doesn’t mean new cabling.
Works with the register you have.
USB keyboard input is understood by every operating system. Serial, keyboard-wedge and IBM interfaces cover older registers.
A free USB port, or a serial or keyboard port with the matching Zebra cable. The scanner is host-powered at 4.5 to 5.5 V.
A driver for keyboard input, or a battery or charger.
New, ready to connect.
This DS9308 is sold New: a new scanner, bundled with a USB cable and an AnyHDD microfiber cloth.
Backed by AnyHDD's one-year warranty and 30-day returns, with free return shipping on defective items. We've supplied IT hardware to businesses since 2006.
Tech specs
As published in Zebra’s DS9300 Series specification sheet.
| Model | Zebra DS9308, corded presentation imager |
|---|---|
| Image sensor | 1280 × 800 pixels |
| Field of view | 52° H × 33° V nominal |
| Light source | Aiming: circular 617 nm amber LED; illumination: 660 nm hyper red LED |
| 1D symbologies | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, Interleaved 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 |
| 2D symbologies | PDF417, Micro PDF417, Composite, TLC-39, Aztec, Data Matrix, MaxiCode, QR, Micro QR, Han Xin, Postal, securPharm, DotCode, Dotted Data Matrix |
| OCR | OCR-A, OCR-B, MICR, US currency |
| Minimum element | Code 39 3 mil · Code 128 3 mil · Data Matrix 5 mil · QR 5 mil |
| Minimum contrast | 15% |
| Skew / pitch / roll | ±60° / ±60° / 360° |
| Swipe speed | Up to 120 in/s (305 cm/s) for 13 mil UPC, optimized mode |
| Decode range, typical | Code 39 3 mil 0–2.5 in · 5 mil 0–5.0 in · 20 mil 0–11.0 in · Code 128 3 mil 0–2.0 in · 5 mil 0–4.0 in · PDF417 6.7 mil 0–4.0 in · UPC 13 mil 0–8.8 in · Data Matrix 10 mil 0–4.5 in · QR 20 mil 0–7.5 in |
| Host interfaces | USB Certified, RS-232, keyboard wedge, TGCS (IBM) 46XX over RS-485 |
|---|---|
| Keyboards | Over 90 international layouts |
| Indicators | Good decode LEDs, rear-view LEDs, beeper with adjustable tone and volume |
| Power | 4.5–5.5 V DC host-powered or external supply; 335 mA presentation / 350 mA trigger mode; standby 135 mA / 75 mA at 5 V |
| Imaging | Exports bitmap, JPEG or TIFF; 109 PPI on an A6 document |
| EAS | Checkpoint EAS deactivation on EAS configurations only (DS9308-…ZC…) |
| Drop · tumble · sealing | Multiple 5.0 ft (1.5 m) drops to concrete · 1,000 tumbles in a 1.5 ft tumbler · IP52 |
| Operating temperature | 32 to 122 °F (0 to 50 °C); 5–95% RH non-condensing |
| Ambient light | 0 to 107,700 lux |
| Dimensions | 5.7 × 3.4 × 3.3 in (14.5 × 8.6 × 8.3 cm) |
| Weight | 11.2 oz (318 g) |
| Colors | Midnight Black, Alpine White |
Source: Zebra DS9300 Series spec sheet (SS-DS9300, 10/12/2022); USB default from the DS9308 Product Reference Guide MN-003532-08EN.
Questions we get asked.
Does it work with a Mac, an iPad or a Chromebook?
Over USB the DS9308 autodetects the host and starts as a HID keyboard, which a Mac, Windows PC or Chromebook understands without a driver. An iPad or Android tablet needs a USB adapter that supports keyboards.
Will it read a barcode from a phone screen?
Yes. The curved exit window is designed to cut reflections from glossy screens, and Zebra’s typical range for a 20 mil QR code is from contact to 7.5 inches.
Can I pick it up and use it handheld?
Yes. It has a scan trigger for handheld use; on the counter it works hands-free in presentation mode.
How do I make it press Enter or Tab after each scan?
Scan the Add Enter Key or Tab Key barcode in the DS9308 Product Reference Guide, or set a suffix in 123Scan and program the scanner with the barcode it generates.
What’s the difference from the DS9208?
The DS9308 is Zebra’s successor to the DS9208: a 1280 × 800 sensor, faster swipe speed, a ratcheting four-position base, DotCode and Digimarc-capable models, and 1,000-tumble durability. It takes DS9208 cables and power supplies.
What condition will mine arrive in?
This listing is new: it ships factory sealed in the manufacturer's original packaging, with the one-year AnyHDD warranty from the date of delivery.
What warranty is included?
It carries a one-year AnyHDD warranty from the date of delivery. Where applicable, it may also be eligible for the original manufacturer's warranty.
What is your return policy?
30 days for a full refund if it is not the right fit. Return shipping is covered on anything that arrives not as described.
Who is AnyHDD?
We've supplied IT hardware to businesses since 2006. Every unit is inspected and tested in our own building before it is listed.
